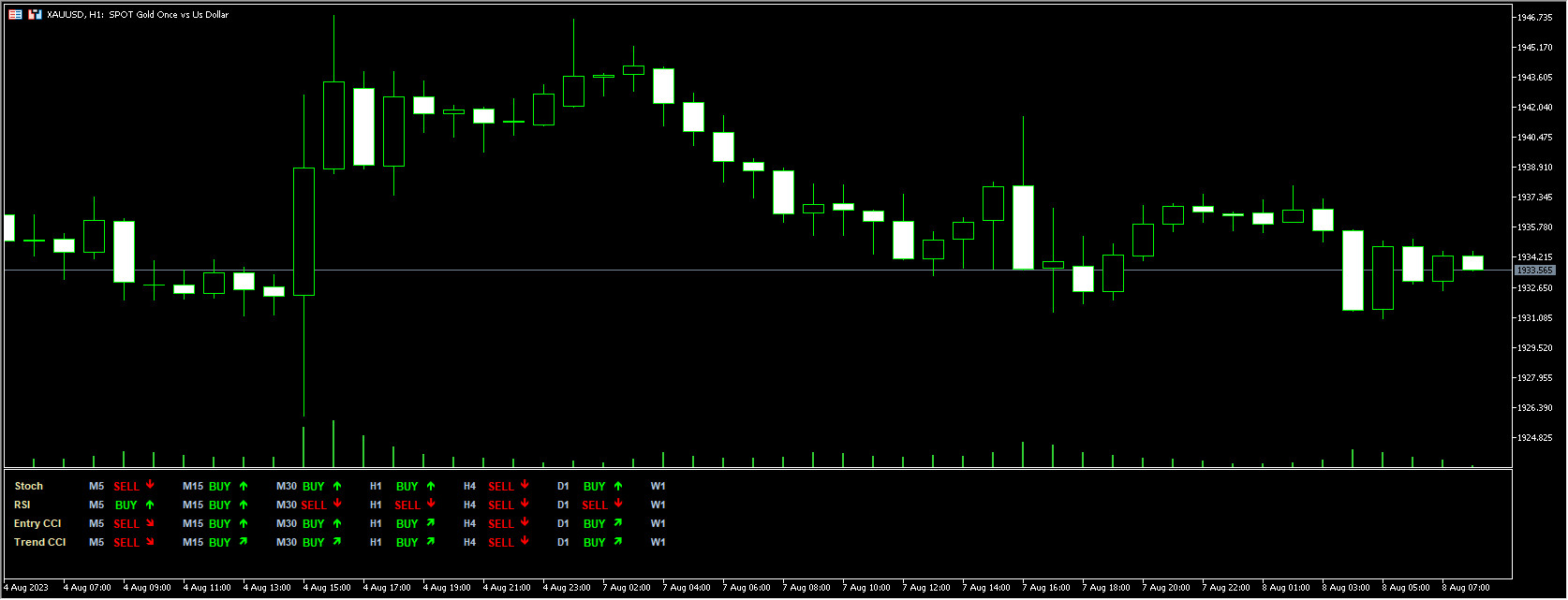

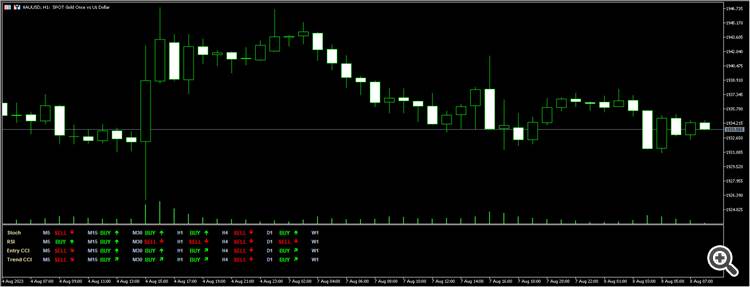

Trend Dashboard Indicator MetaTrader 5 indicator — a multi-timeframe indicator based on three standard indicators: Stochastic Oscillator, RSI (Relative Strength Index) and CCI (Commodity Channel Index). It shows the current trend direction for the M1, M5, M15, M30, H1, H4, D1, W1 and MN1 time frames. When you follow such indicators, you can get a clear picture of trends on all important time frames. It doesn't matter which time frame you attach this indicator to. This indicator is downloadable for MT4 and MT5.

input parameters

CheckCandle (default=previous) – check which candle the indicator value is for – applies to displays and alerts.

PercentK (default = 8) — bar period used for calculation of stochastic %K lines.

PercentD (default = 3) — bar period used to calculate the stochastic %D line.

Slowing (default = 3) — the slowing value of the stochastic indicator.

RSIP1 (default = 14) — period of the first RSI (fast).

RSIP2 (default = 70) — the period of the second RSI (slow).

Enabled (default = false/true) — If true, the Trend Dashboard indicator will calculate and display signals within the given time frame.

EnableNativeAlerts (default = false) — if true, alerts will pop up using native MetaTrader when signal confluence occurs on certain time frames.

EnableEmailAlerts (default = false) — If true, email messages will be sent when signal confluence occurs within certain time frames. Email should be configured correctly in MetaTrader via Tools->Options->Email.

EnablePushAlerts (default = false) — If true, email messages will be sent when signal confluence occurs within certain time frames. Notifications should be configured correctly in MetaTrader via Tools->Options->Notifications.

Other parameters — symbol code for trend direction arrow and color.

Attachment download

📎 trend_dashboard_indicator.mq5 (16.66 KB)

Source: MQL5 #45797
