Programming Mode - Compound - MetaTrader 5 Library | MT5 EA Download - MetaTrader 5 Resources

 /**********************************************************************

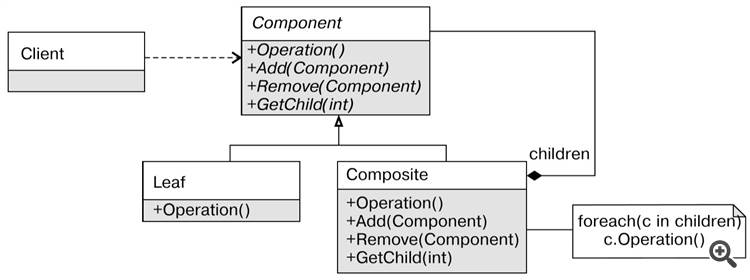

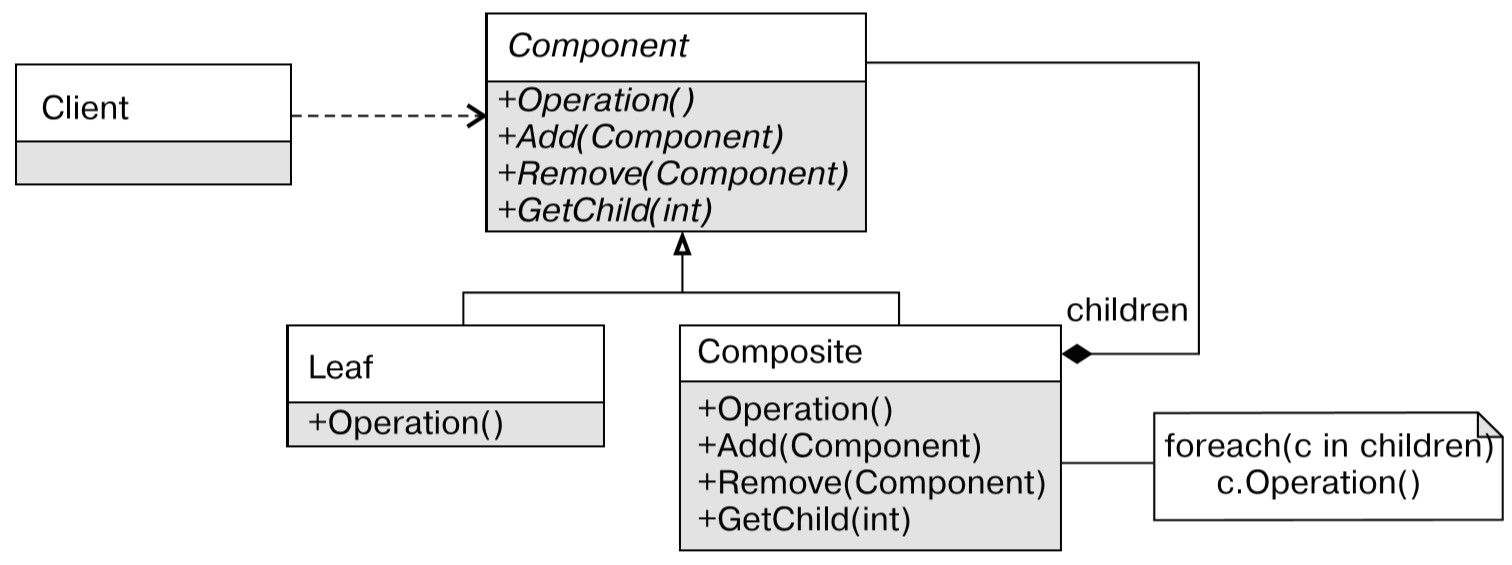

Programming pattern: Composite pattern combines objects into a tree structure to represent a part-whole hierarchy.
Composition allows clients to work uniformly on individual objects and combinations of objects.
/**/

 /************************************************************************/
class component // abstract (interface) { public :
virtual blank op() = 0 ;
virtual blank add(component*) = 0 ;
virtual blank remove(component*) = 0 ;
Virtual Component * GetChild( integer ) = 0 ;
                    component() {}
                    component( stringname ):mname(name) {} protected :
string name;
  }; /************************************************************************/
class leaf: people component { people :
void operation() { print (name);}
blank add(component*){}
blank delete(component*){}
  Component *GetChild( integer ) { return void ;}
                     leaves( stringname ):component(name){}
  }; /************************************************************************/
Class composite: public component { people :
  ObjectList node;
void operation() { print (name); integer c = nodes.Count(); for ( integer i = 0 ; i Blank Add(Component*c) {nodes+=c;}
Blank delete(component*c) {node-=c;}
  Component *GetChild( integer i) { return node[i];}
                    composite( stringname ):component(name){}
  }; /**/

/**********************************************************************
Applicability Use the Composite pattern when you want to represent a part-whole hierarchy of objects.
      You want clients to be able to ignore the difference between component objects and individual objects. The client will handle all objects in the composition structure evenly.
Actor Component declares the interface of the objects in the composition.
      Implement the default behavior of the interface common to all classes, as appropriate.
      Declare an interface for accessing and managing its subcomponents.
      (Optional) Define an interface for accessing the component's parent recursive structure, and implement it where appropriate.
  Leaf represents the leaf object in the composition. A leaf has no children.
      Defines the behavior of the original objects in the composition.
  Composite materials define the behavior of subcomponents.
      Store child components.
      Implement child-related operations in the Component interface.
  Clients operate the objects in the composition through the Component interface.
Cooperative clients use the Component class interface to interact with objects in the composite structure. If the recipient is a leaf, the request is processed directly. If the receiver is a composite, then it will typically forward the request to its subcomponents, possibly performing additional operations before and/or after the forwarding.
Consequences Composite pattern defines a class hierarchy consisting of primitive objects and composite objects.
      Primitive objects can be composed into more complex objects, which in turn can be composed, and so on recursively. Whenever client code requires a primitive object, it can also take a composite object.
      Make it simple for the client. Customers can handle composite structures and individual objects uniformly. Clients usually don't know (and shouldn't care) whether they are dealing with a leaf or a composite component. This simplifies client code because it avoids writing markup and case statement-style functions over classes that define combinations.
      Makes it easier to add new types of components. Newly defined composite or leaf classes automatically work with existing structures and client code.
      There is no need to change the client for the new component class.
      It will make your design too general. The disadvantage is that it is easy to add new components and the advantage is that it makes it more difficult to constrain the composition of components. Sometimes you want a composite to contain only certain components.      With Composite, you cannot rely on the type system to enforce these constraints for you. You must use runtime checking instead.
/**/

 /**********************************************************************
Composite mode usage example. client/****************************************************************/
blank start ()
  {
/*root*/ component*root = new composite( "root" ); //dynamic// = composite root("ROOT"); //auto /*part*/ component*branch1 = new composite( "branch1" );
  component * branch2 = new composite( "branch2" );
  component*leaf1 = new leaf( "leaf1" );
  component*leaf2 = new leaf( "leaf2" );
/*Build tree*/ Root.Add ( invalid ); //Error... Root.Add(branch1);
  root.add(branch2);
  branch1.Add(leaf1);
  branch1.add(leaf2);
  branch2.add(leaf2);
  branch2.add( new leaf( "leaf3" )); //Add section by reference (not var) root.Operation(); //View { string s; for ( integer i = 0 ; i < 13 ; i++) {s+= "-" ;} print (s);}
/*Delete the entire branch*/ root.delete(branch1);
  root.Operation(); //View /*Delete root directory*/ Delete root;
  } /************************************************************************
Output:
/**
  root branch 1
      Leaf 1
      Leaf 2
    Branch 2
      Leaf 2
      Leaf 3
  -------------
  root branch 2
      Leaf 2
      Leaf 3
/**/

Attachment download

📎 composite.mq5 (2.67 KB)

📎 composite.mqh (4.44 KB)

📎 objectlist.mqh (6.64 KB)

Source: MQL5 #29767
