Connect KuCoin Spot Service to MT5 Download – Free | Forex Indicators Download – MetaTrader 5 Resources

KuCoin Spot Connect Expert with MetaTrader 5 is designed to instantly transfer transactions from KuCoin Spot market to MT5. This tool enables traders to monitor real-time price data directly within MetaTrader and use its analytical tools for deeper market analysis.

The expert acts as a data interface, transmitting cryptocurrency spot market price data to MT5 in real-time without the need to execute transactions.

Technical Specification SheetKuCoin Spot Connect Service to MT5

The following table lists the specifications of KuCoin Spot Connect Expert and MetaTrader 5:

KuCoin Spot Connect Expert MT5 Overview

In order to receive real-time market data from the KuCoin server, KuCoin Spot Connect Expert MT5 must connect to the data source via the Internet using the HTTP protocol.

This communication is carried out within MetaTrader 5 using the WebRequest function.

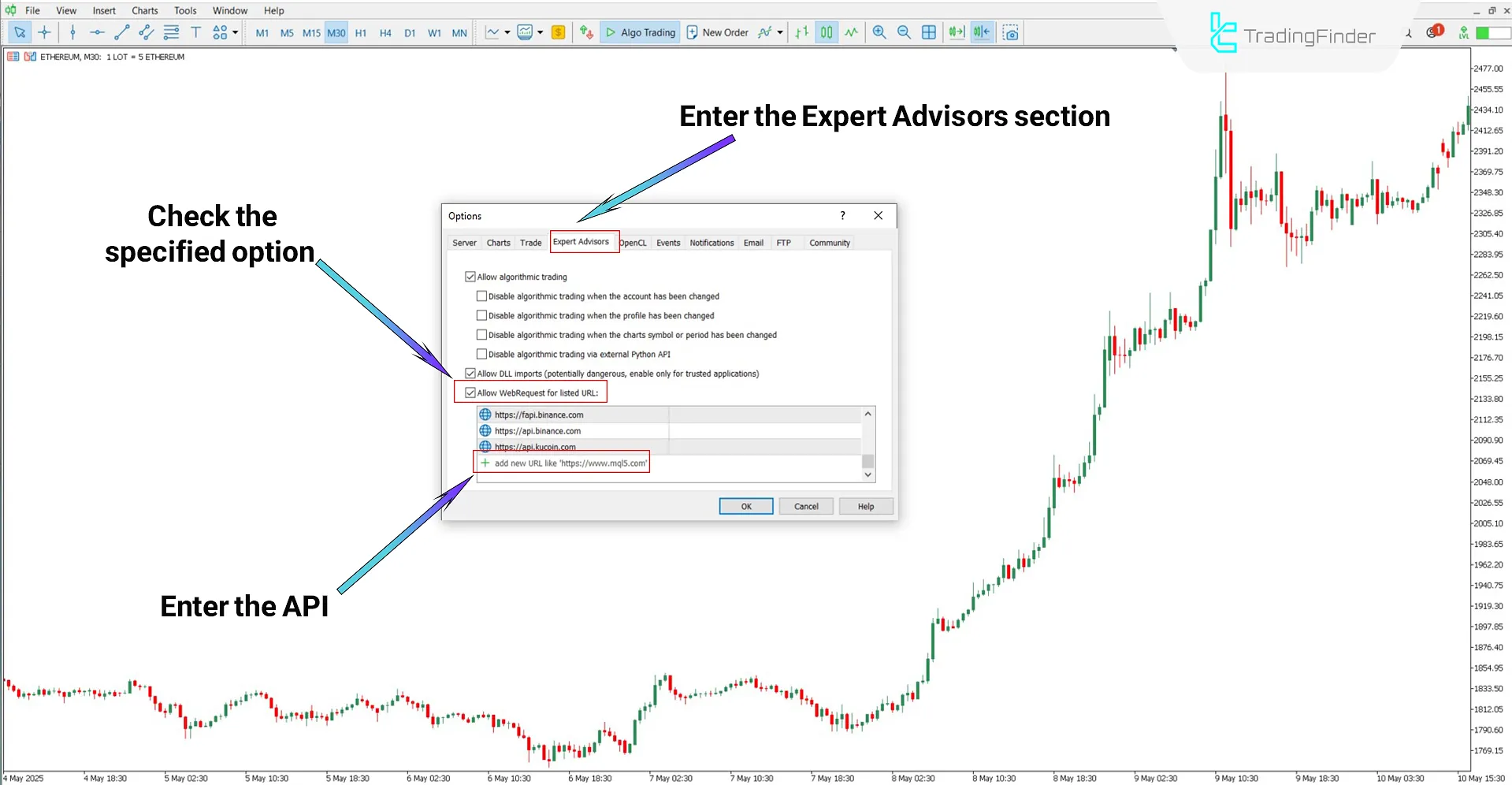

Steps to enable WebRequest in MetaTrader 5

To configure WebRequest, follow these steps:

1. In the top menu of MetaTrader 5, click "Tools"
2. Select "Options" from the drop-down menu
3. Go to the Expert Advisor tab
4. Enable the option "Allow WebRequests for listed URLs"
5. Enter the following address (https://api.kucoin.com) in the input box

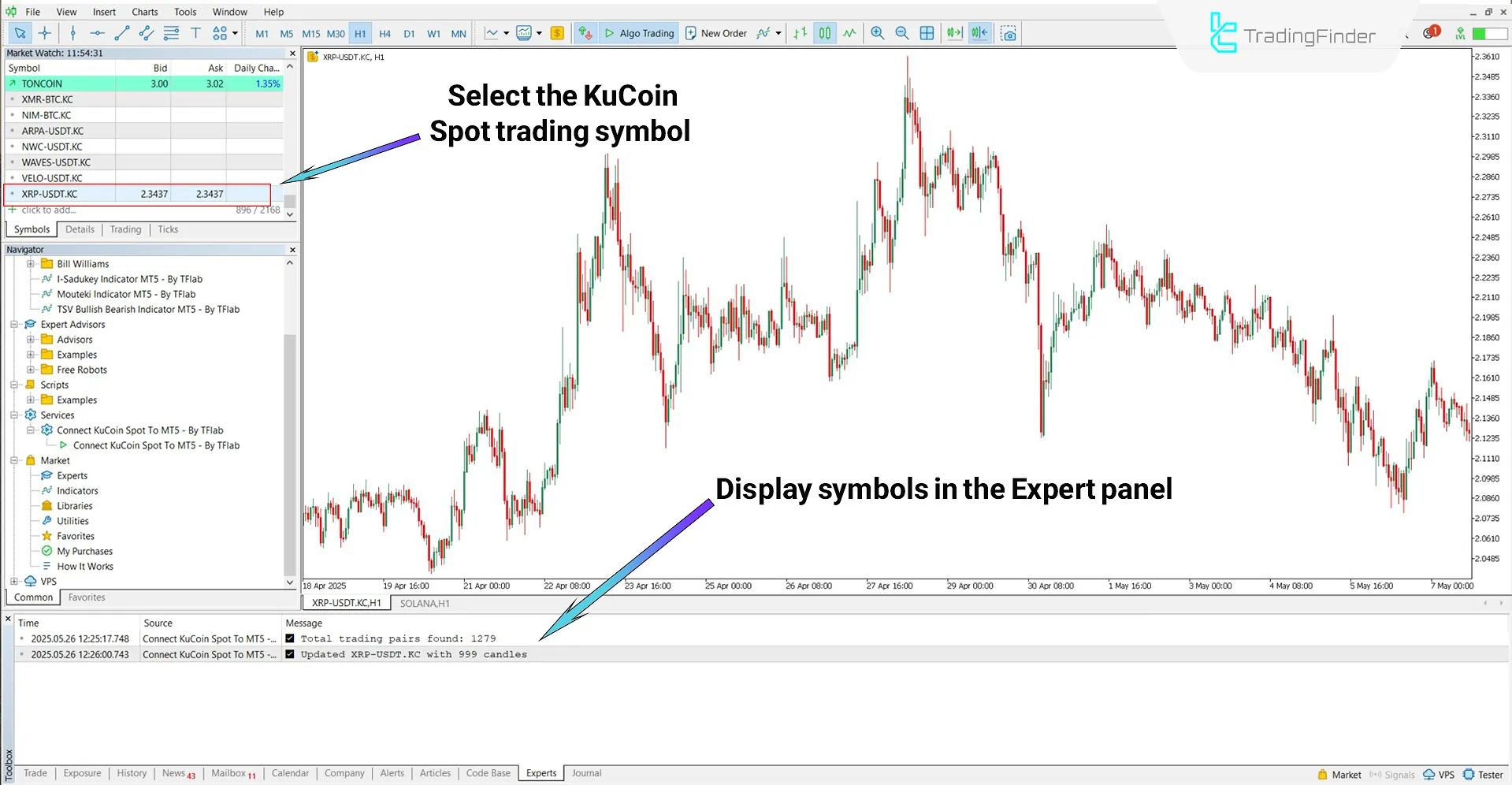

Added KuCoin spot market symbol

To view live charts of a specific cryptocurrency in the KuCoin spot market in MT5, you must first add the desired symbol to the Market Watch panel.

First, apply Expert to the platform and follow these steps:

1. In MetaTrader 5, press "Ctrl + U" shortcut
2. In the symbols section, navigate to the KuCoin/Spot folder
3. Find the desired symbol from the list and double-click to add it to the Market Watch list
4. Close the window and in the Market Watch section, right-click on the desired symbol and click "Chart Window"

NOTE: Applied symbols will also appear in the Expert section.

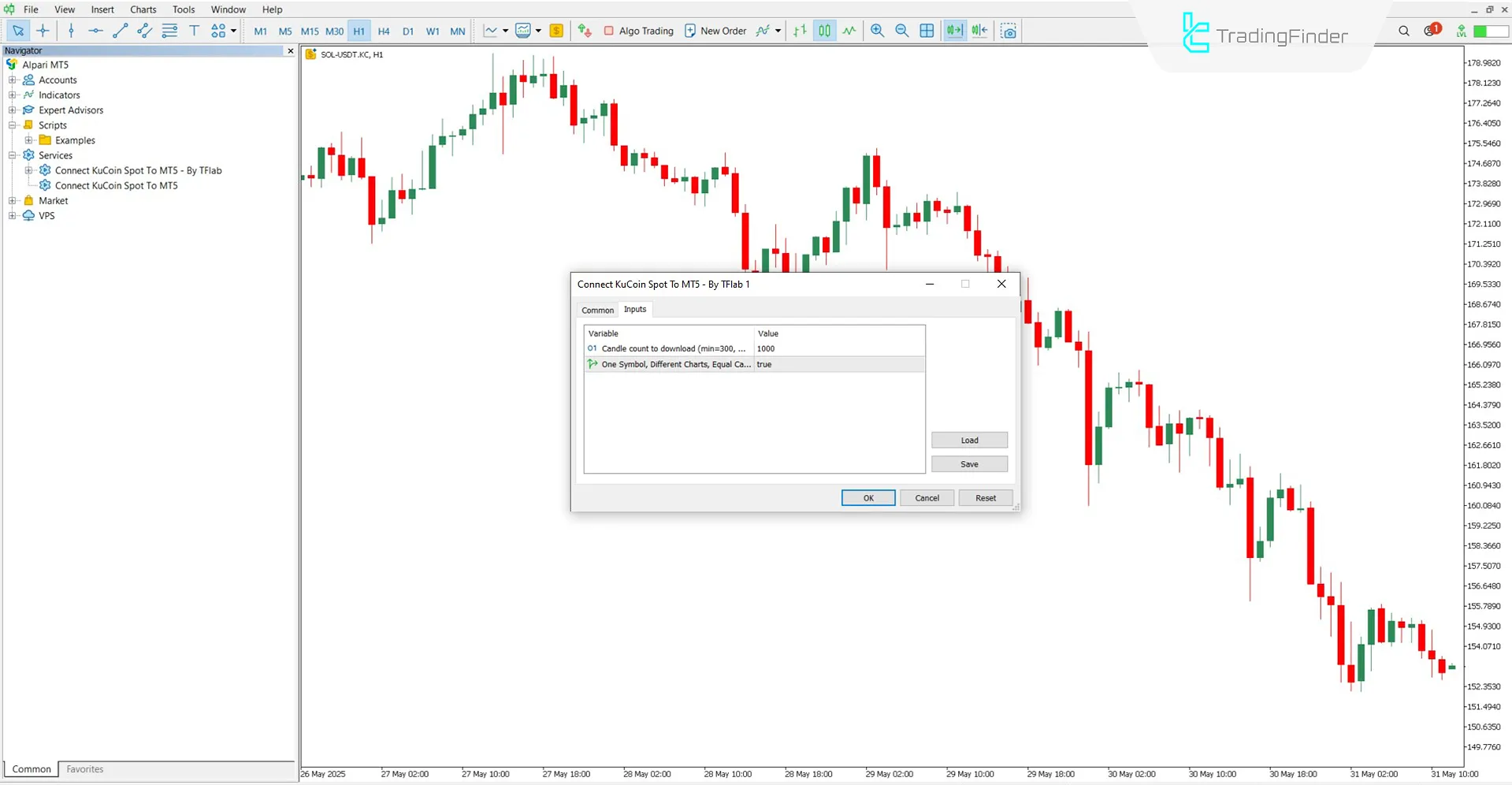

Set up KuCoin Spot to connect to MT5

The settings panel for connecting KuCoin Spot service to MT5 is as shown below:

• Number of candles to download (minimum = 100, maximum = 10000): Specifies the number of candles to load when executing Expert
• One symbol, different charts, same candles: If you enable this option and open the same symbol in multiple charts, the number of candles shown will be the same in all charts

Note:

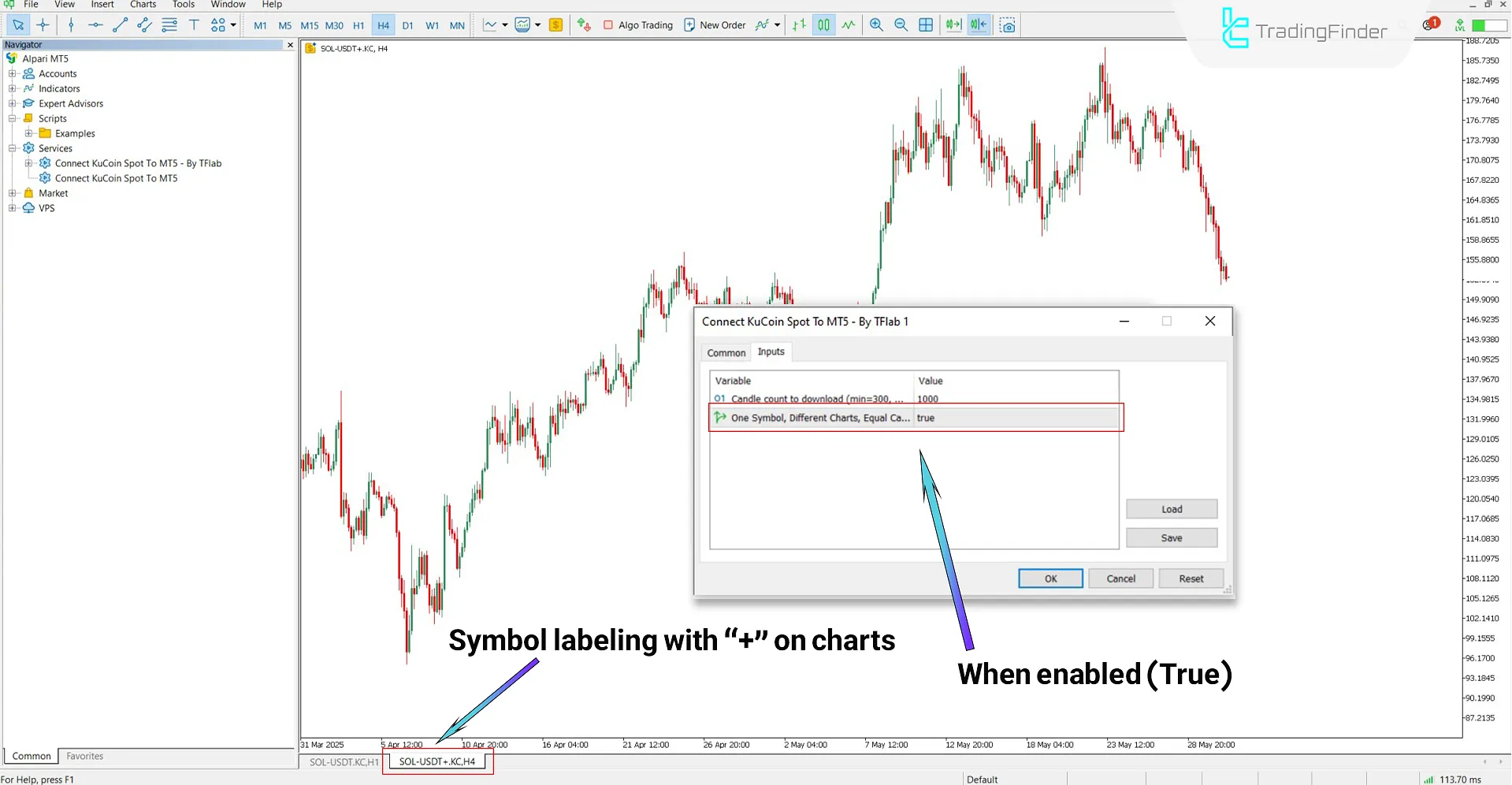

When the "Different charts for one symbol, equal number of candles" option is enabled, adding multiple charts of the same symbol (e.g. "SOL/USDT") will result in consecutive symbols, such as SOL+, SOL++ , etc., appended to the name of each chart.
In this mode, all charts maintain the same number of candles, and each time frame gets its price data independently from the server.
However, if this option is disabled, the higher time range will get data from the lower time range, eliminating the need to make a separate data request from the server.

Conclusion

KuCoin Spot Connect Expert with MetaTrader 5 is a tool designed to display real-time cryptocurrency prices. KuCoin Spot market is directly within MT5.

This trading tool only retrieves real-time data through KuCoin official API and does not open positions. The acquired data is presented in MetaTrader in the form of accurate and configurable charts.
