This service is one of the products of TradingFinder . It is designed to receive and display real-time price data from the Binance spot market in the MetaTrader 5 environment

This trading tool does not perform any trading operations. It simply acts as a bridge to get cryptocurrency pair price data from Binance via API and displays it as a chart in the MetaTrader 5 chart window.

Binance Spot to MetaTrader 5 Expert Specification Sheet

The table below outlines the specifications of the Binance Spot to MetaTrader 5 connection service:

Quick Overview Binance Spot to MetaTrader 5

TheBinance Spot to MetaTrader 5 Expert requires an Internet connection to send HTTP requests and get real-time market data from the Binance servers.

This process makes use of the WebRequest functionality in MetaTrader 5. Due to internal platform security restrictions, permission to use WebRequest must be manually enabled for the target domain.

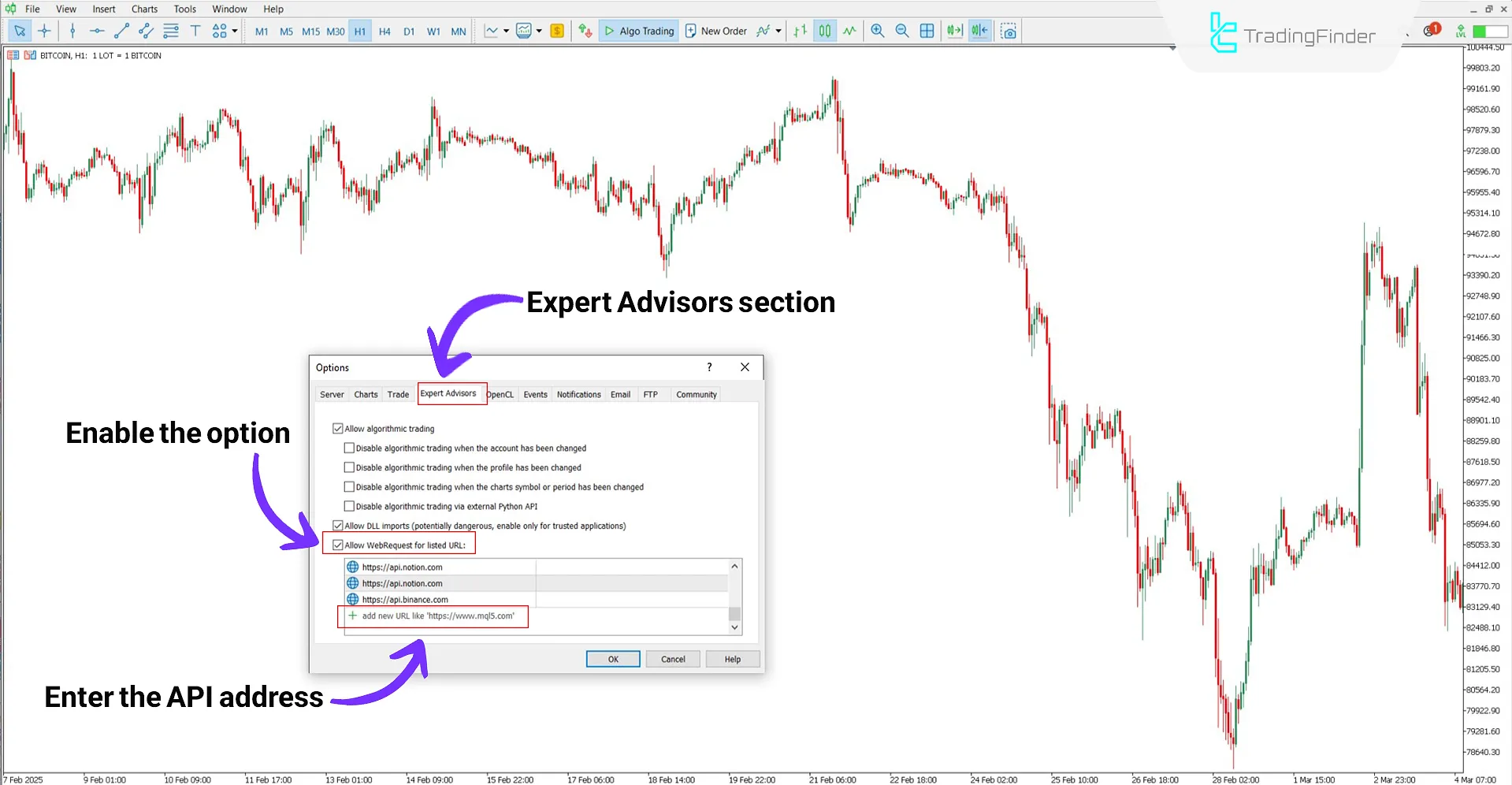

To enable WebRequest

To activate WebRequest, follow these steps:

1. From the top menu, go to “Tools” and select “Options”
2. In the window that opens, switch to the "Expert Advisors" tab
3. Enable the checkbox "Allow WebRequests to listed URLs"
4. In the input field below, enter Binance’s API address (https://api.binance.com)

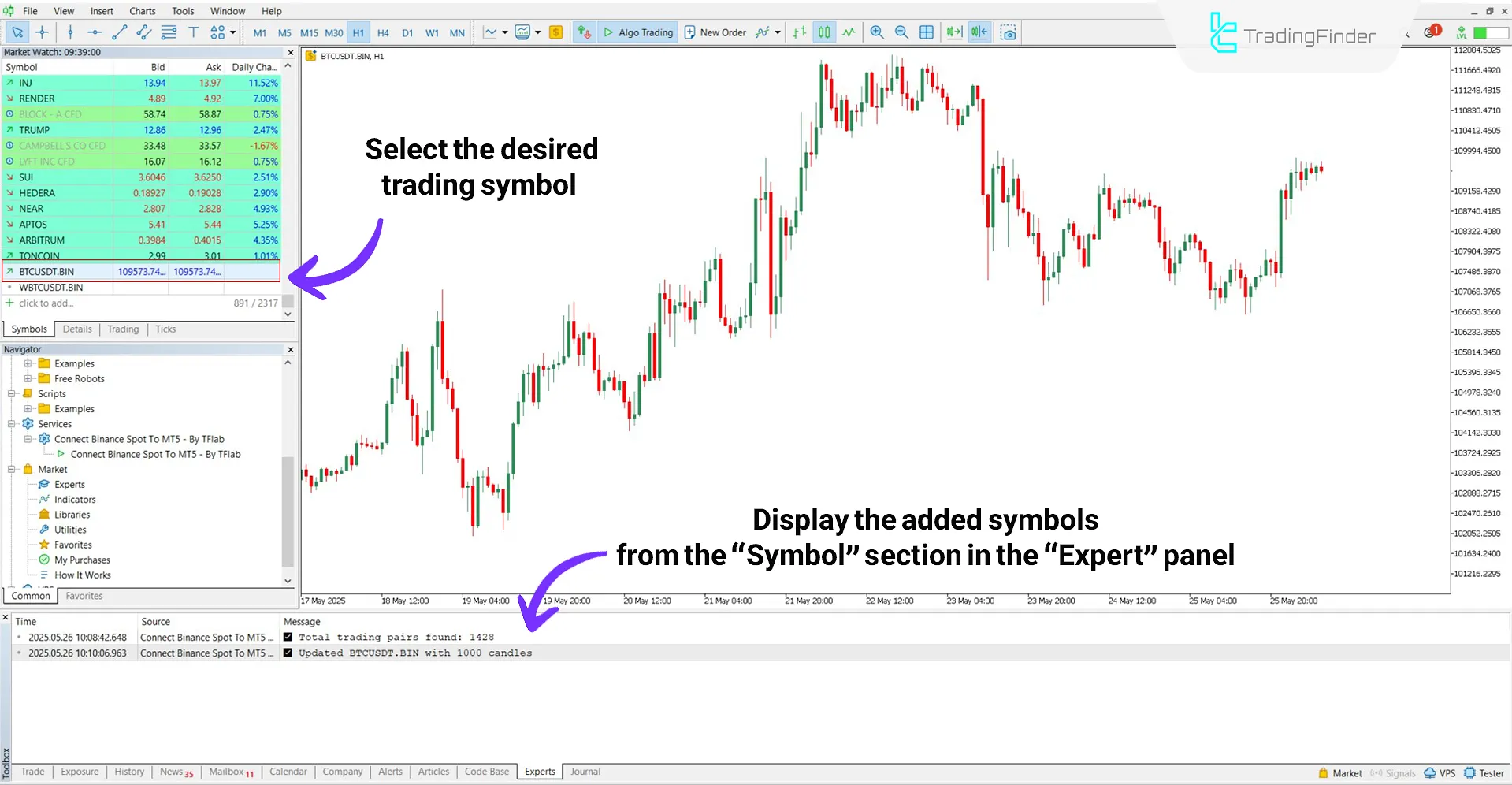

Add Binance Spot Symbol

To view charts for a specific cryptocurrency pair in the Binance spot market, you must first add the ticker to the Market Watch panel. After running Expert on the chart, perform the following steps:

1. In MetaTrader 5, press Ctrl+U or go to the “Symbols” section in the top menu
2. In the window that opens, find and open the group related to the Expert symbol (folder: Binance/Spot)
3. In the list that appears, double-click on the desired symbol
4. Then close the window and from the Market Watch panel (located on the left side of MetaTrader 5), right-click on the desired symbol and select "Chart Window"
5. Note: The added trading symbols are also visible in the "Experts" section of MetaTrader 5

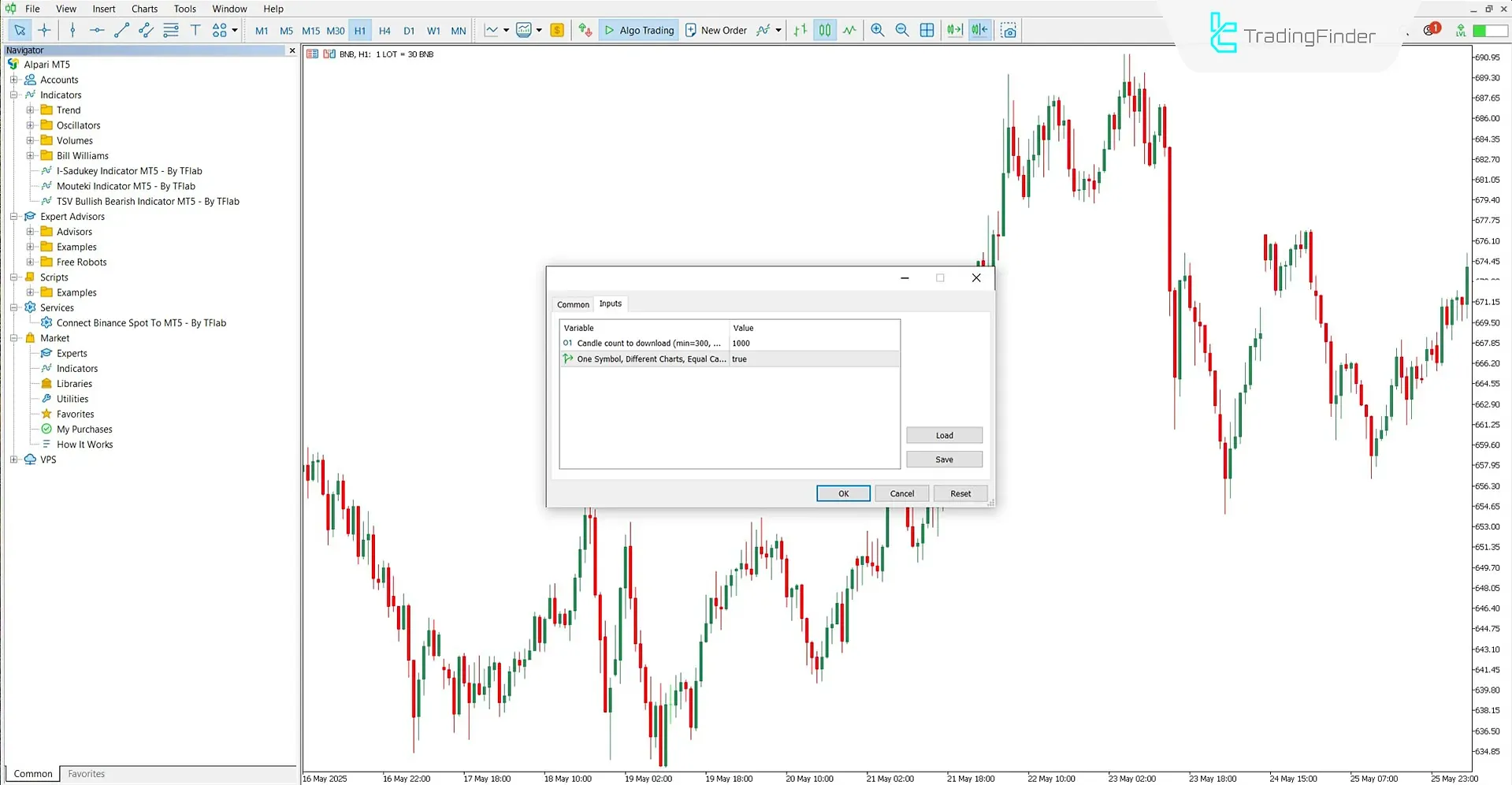

Binance Spot to the settings panel of MetaTrader 5 Expert

The following settings are available in the expert configuration panel:

• Number of candles to download (min = 300, max = 10000): The number of candles to download from Binance and display on the chart. Value must be between 300 and 1000
• One symbol, different charts, same number of candles: If the same symbol is opened in several charts, the number of candles received will be equal in all charts

Note:

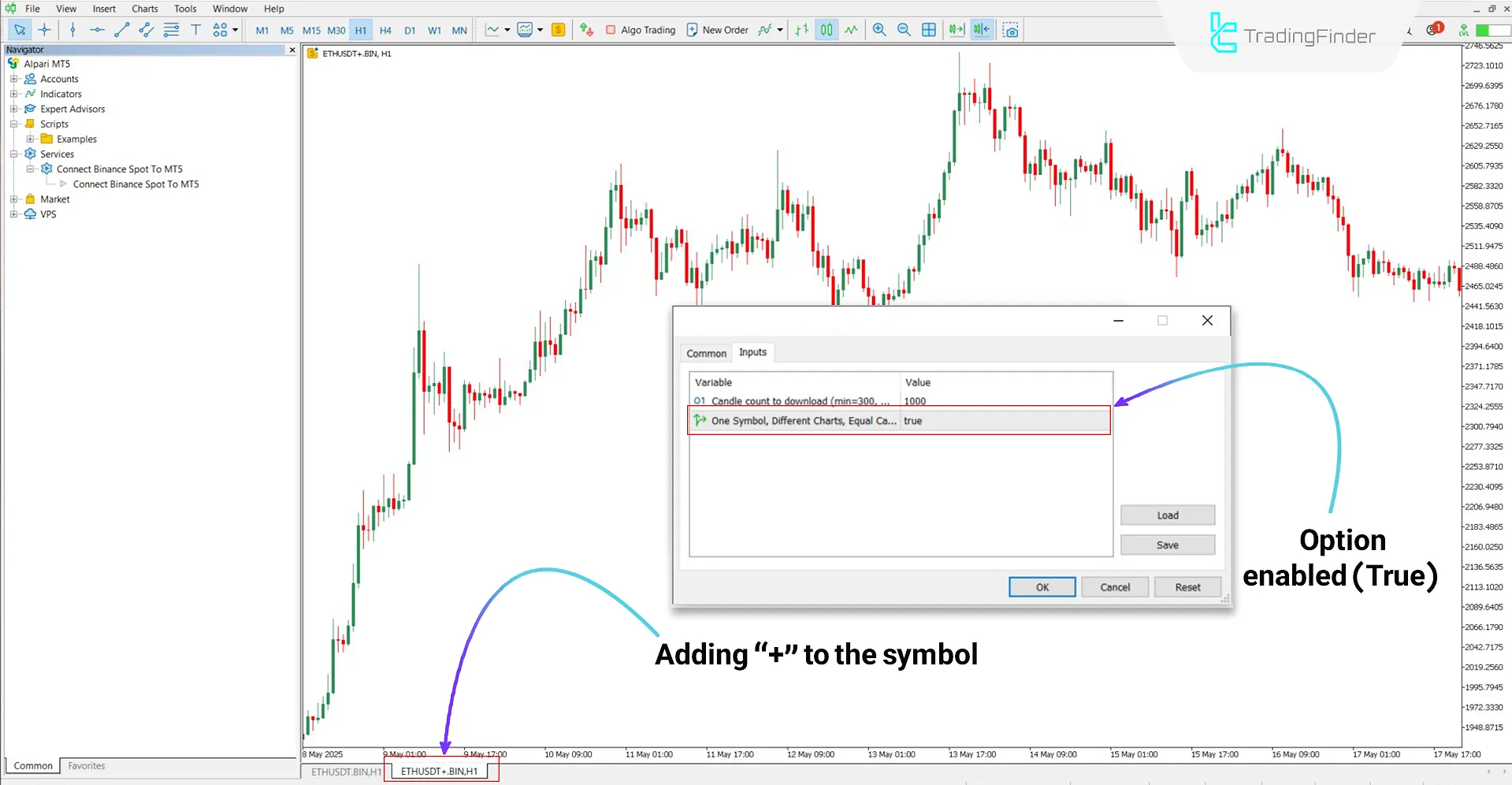

When the "One symbol, different charts, equal number of candles" option is enabled, opening multiple charts for the same symbol (e.g. ETH/USDT) will show a "+" signature incrementally next to each chart title (ETH+, ETH++).
In this mode, all open charts will have the same number of candles, and each time frame will download its own price data independently from the server.

Conversely, when this option is disabled, the higher time range will get data from the lower time range chart instead of getting the data separately.

Conclusion

Binance Spot to MetaTrader 5 Expert is a useful tool for analysts who want to view and analyze real-time cryptocurrency market data within the MT5 platform.

The tool fetches data from Binance’s API and displays accurate, configurable charts of digital currency pairs without having to perform any trades.
