Skyscraper_Fix_HTF_Signal - MetaTrader 5 Script - MT4/MT5 Resources

Skyscraper_Fix_HTF_Signal indicator shows the trend direction or execution by Skyscraper_Fix indicator on the selected bar as a graphical object with a colored indication of the trend or trade direction, generates an alert or sound notification if there is a signal to execute a trade or sends a push notification to your smartphone.

If the trend continues on the selected bar, the indicator will alert via a graphical object in the form of a right arrow, the color of which corresponds to the direction of the trend. If the trend of the selected bar changes, the indicator will alert with a diagonal arrow, the color and direction of which correspond to the direction of the executed trade.

All input parameters can be divided into three major groups:

 Enter string symbol_= ”” ; // Financial assets
Input ENUM_TIMEFRAMES time range = PERIOD_H6 ; // Calculate indicator time range
Input unit length = 10 ; // ATR period
Enter double Kv= 0.9 ; // indicator sensitivity coefficient
Enter double percentage = 0 ; // Center line is close to pole line
Input method HighLow=MODE_HighLow; // Calculate the indicator based on the highest price/lowest price or closing price

 //----Indicator display settings
Enter the unit signal column = 0 ; // Number of bars to get the signal from (0 - current bar)
Input stringSymbols_Sirname =INDICATOR_NAME "_label_" ; // Indicator label name
Input color UpSymol_Color= lime green ; // Uptrend symbol color
Input color DnSymol_Color= clr dark pink ; // Autumn symbol color
Input color IndName_color = clr dark orchid ; // indicator name color
Input unit symbol_size = 60 ; // signal symbol size
Input unit font size = 10 ; // Indicator name font size
Input integer X_1= 5 ; // Horizontal name offset
Input integer Y_1=- 15 ; // Vertical name offset
Input boolean display name = true ; // indicator name display
Input ENUM_BASE_CORNER what corner = CORNER_RIGHT_UPPER ; // Display corner points
Input unit X_= 0 ; // Horizontal offset
Input unit Y_= 20 ; // vertical offset

 //---- Alarm settings
Enter ENUM_ALERT_MODEalert_mode=OnlySound; // indicator trigger options
Input unit alarm count = 0 ; // number of alarms
Input boolean push = true ; // Allow push notifications

If you want to use multiple Skyscraper_Fix_HTF_Signal indicators on one chart, each indicator should have its own Symbols_Sirname string variable value (the name of the indicator label).

In order for the indicator to work, the skyscraper_Fix.ex5 indicator should be added to \MQL5\Indicators folder.

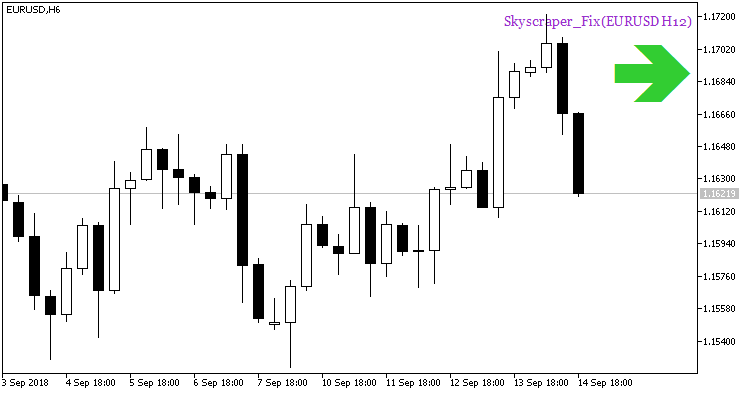

Figure 1. Trend continuation signal based on Skyscraper_Fix indicator data

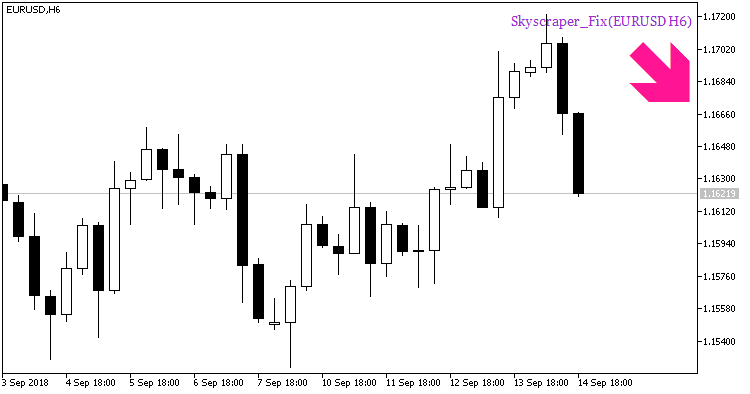

Figure 2. Position opening signal based on Skyscraper_Fix indicator data

Attachment download

📎 skyscraper_fix.mq5 (23.77 KB)

📎 skyscraper_fix_htf_signal.mq5 (29.57 KB)

Source: MQL5 #22336
