Connect KuCoin Futures to MetaTrader 5 – [TradingFinder] – Free

The KuCoin Futures to MetaTrader 5 Connector is designed to quickly transfer pricing data from KuCoin’s futures market to the MetaTrader 5 trading platform. With the help of this tool, traders can view live cryptocurrency prices directly on MT5 charts and take advantage of its analytical capabilities.

Note : This expert advisor only acts as a data bridge and does not independently conduct any transactions.

KuCoin contract to MT5 connector specification sheet

The following table outlines the general features and specifications of the "KuCoin Futures to MetaTrader 5 Connector":

KuCoin futures to MT5 connector list

For the KuCoin Futures Connector to work, real-time data retrieval requires a direct internet connection to KuCoin's servers.

The connection is established via the HTTP protocol , utilizing the WebRequest functionality in MetaTrader 5.

With this MT5 feature, the service can obtain real-time pricing data from the official KuCoin API and display it directly on MetaTrader charts.

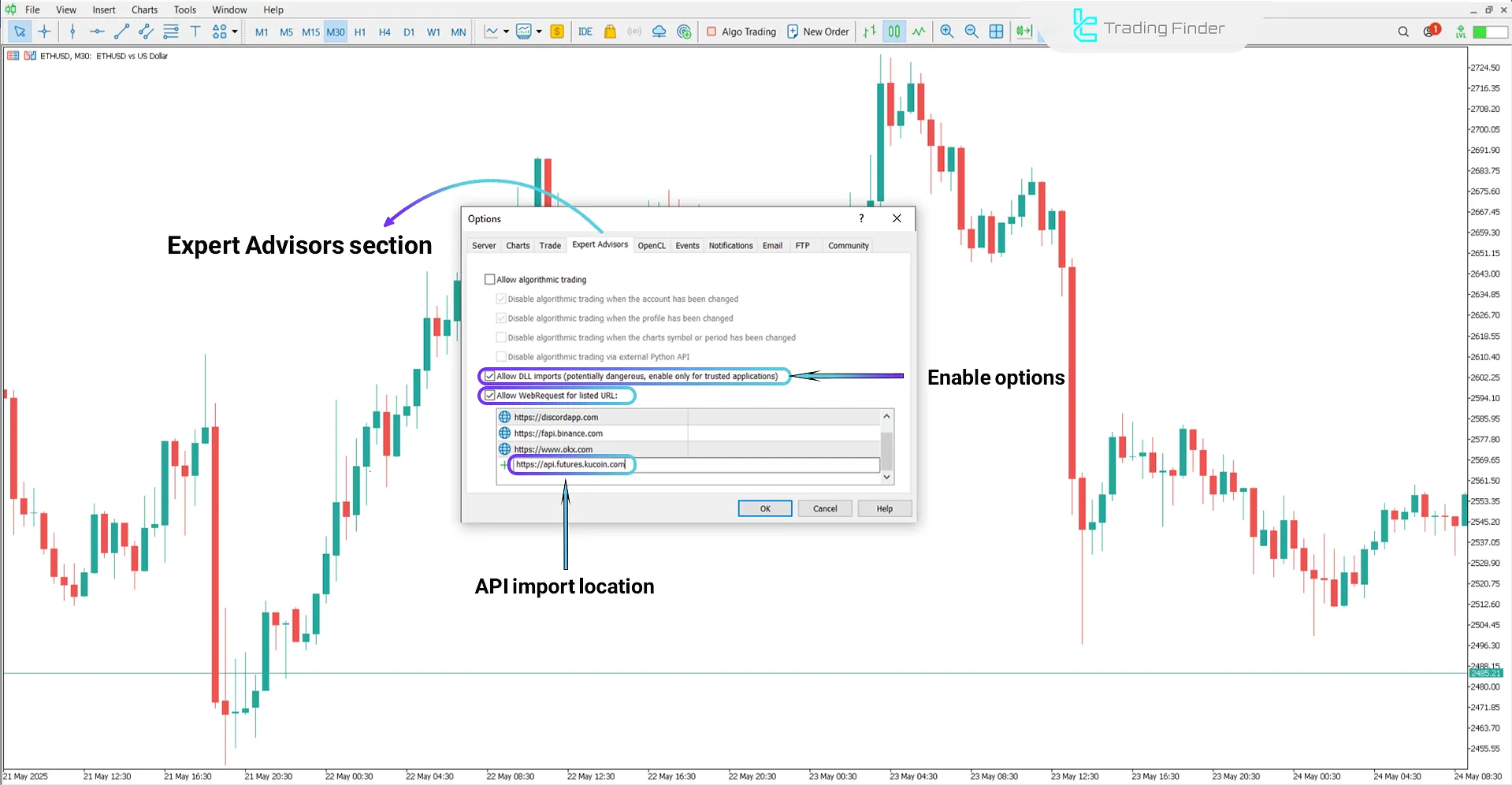

How to enable WebRequest in MetaTrader 5

To activate WebRequest:

1. In the MT5 top toolbar, click "Tools," then go to "Options" ;
2. Select the “Expert Advisors” tab;
3. Enable the option "Allow WebRequests to the listed URLs" ;
4. In the input box, enter the "https://api-futures.kucoin.com" address and click "OK" to save settings.

KuCoin Futures Cryptocurrency Symbol Added to MetaTrader 5

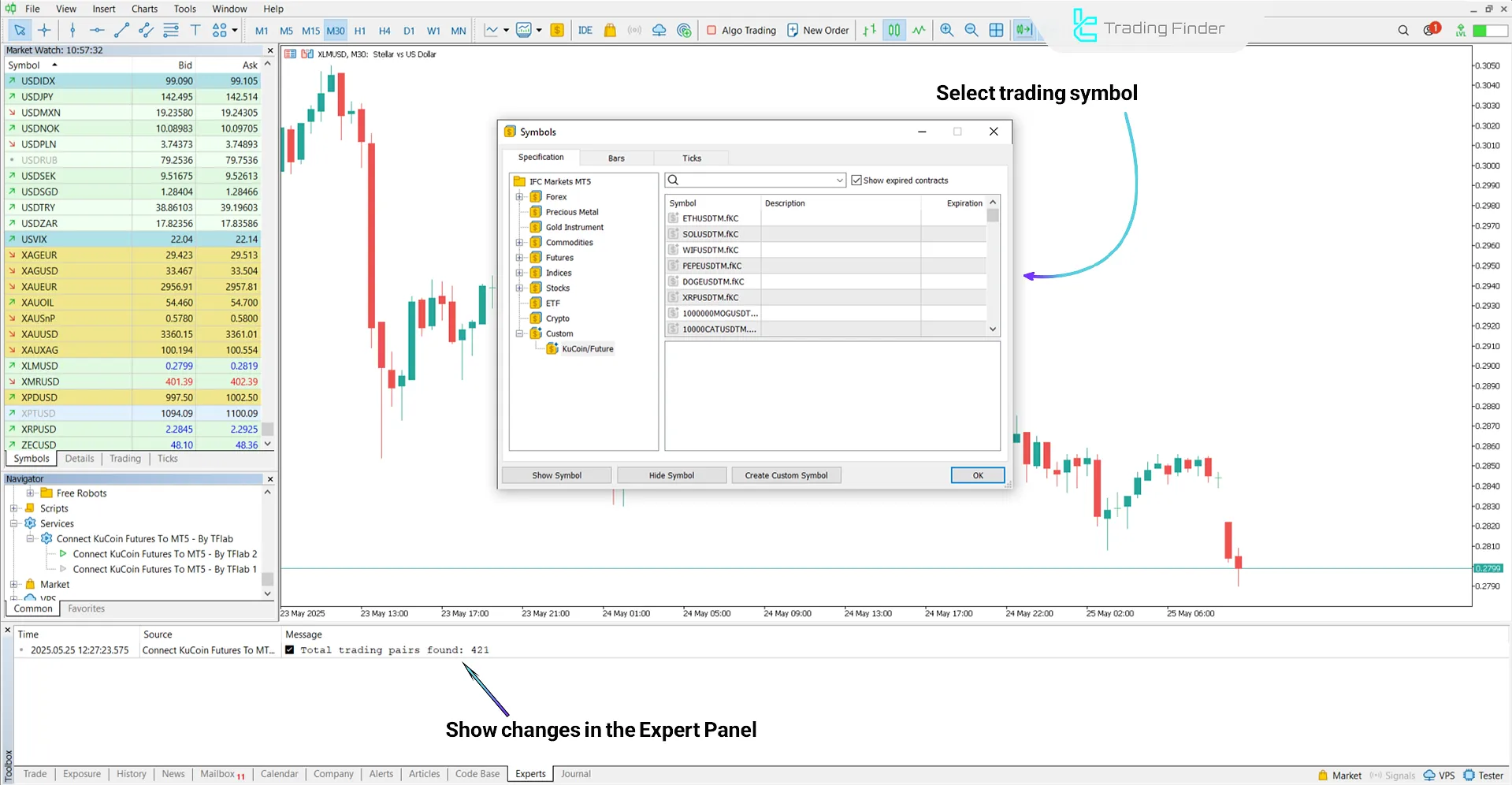

After installing and running the KuCoin Connector EA, you need to add the desired futures market symbols to MetaTrader 5 for charting and analysis:

1. Open the market observation window : select "View," from the top menu, then click "Market Observation" ;
2. Open Symbols List : In the market quote window, right-click on a blank space and select "Symbols" ;
3. Select the KuCoin Futures symbol category : In the window that opens, select the group titled KuCoin Future or KuCoin/F ;
4. Activate Symbols : Select the required cryptocurrency pairs such as BTC/USDT , ETH/USDT , etc;
5. Open Symbol Chart : Once activated, right-click on the symbol in Market Watch and select Chart Window to display the chart.

KuCoin Futures and MetaTrader 5 connection settings

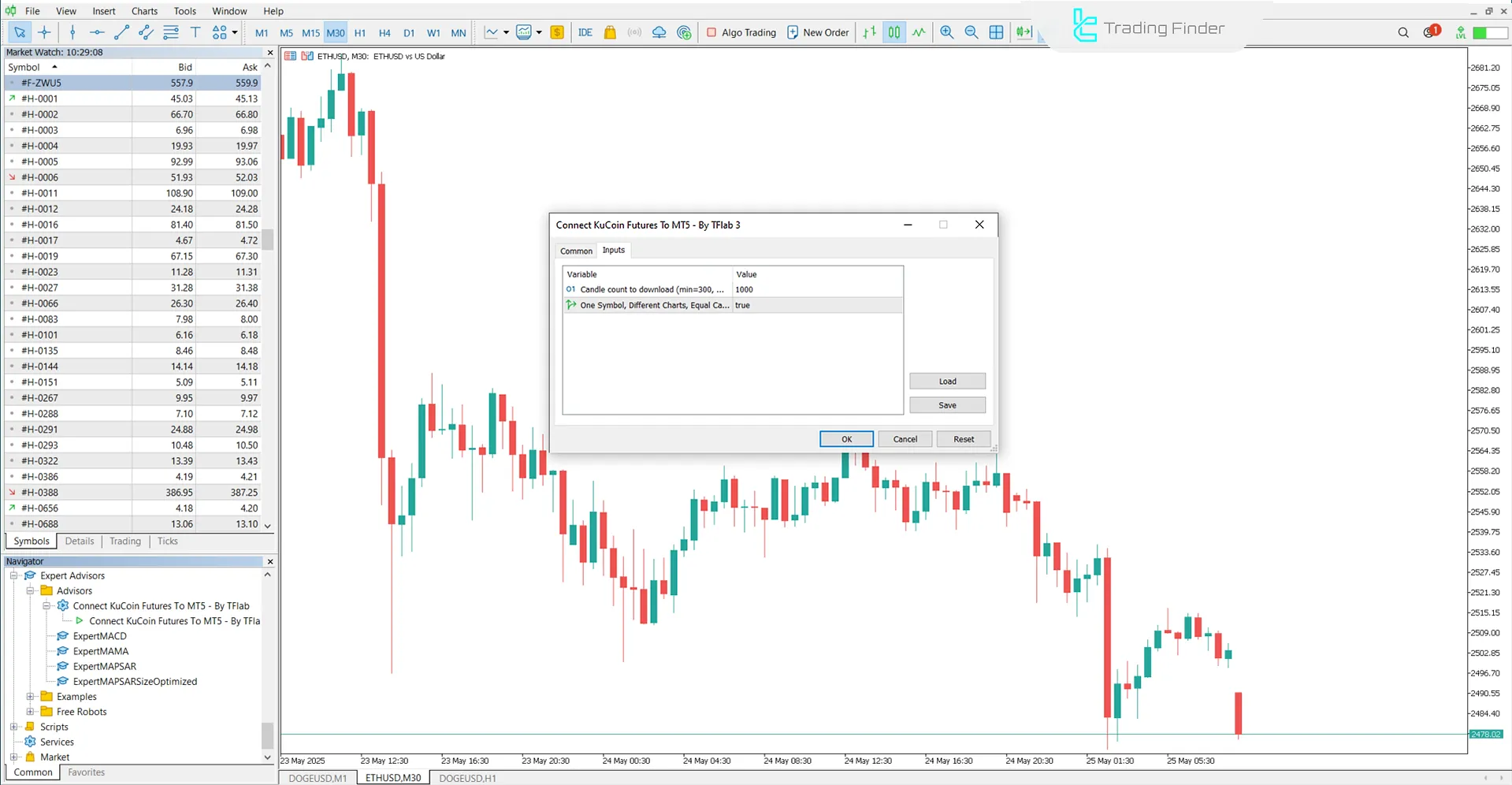

The image below shows the settings panel KuCoin contract to MT5 connector description:

• Number of candles to download (minimum value = 300,...) : At least 300 candles should be downloaded;
• One symbol, different charts, same candles : ensure consistent candle data across multiple charts of the same symbol.


  Note:

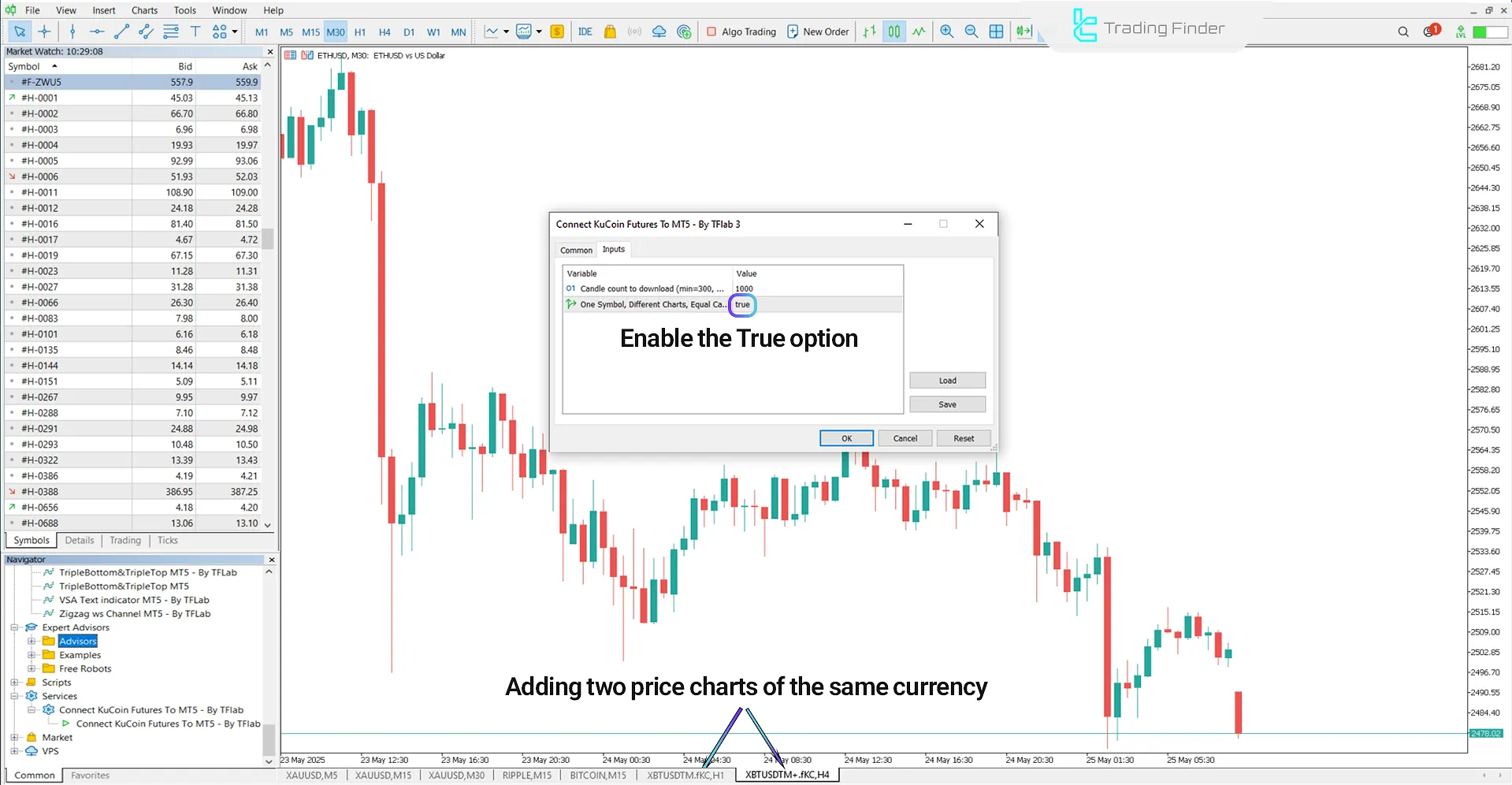

  When the " One symbol, different charts, same candle " option is enabled, opening multiple charts for a specific symbol - such as BTC/USDT - will cause indicators such as "+" and "++" to be added to the end of each chart name.

  In this configuration, each timeframe gets its price data directly from the server and runs independently without dependencies on other timeframes .

  However, if this feature is disabled , a chart with a higher time range retrieves its data from a shorter time range, creating a dependency between them.



Conclusion

The KuCoin contract access MT5 service is a tool that displays real-time cryptocurrency prices in the KuCoin futures market directly within the MetaTrader 5 platform.

Its main function is to retrieve real-time price data from the KuCoin official API and transfer it to the MetaTrader environment for market analysis.
