Connect CoinEX spot and futures to MetaTrader 5 – [TradingFinder] – Free

CoinEX Spot Futures to MT5 is a practical tool that can receive real-time market data from the CoinEX exchange directly into the MetaTrader 5 platform.

This tool is designed for technical analysis , utilizing the CoinEX official API to provide direct access to real-time information on Futures and Spot markets within the MT5 platform.

Specification Sheet CoinEX Spot & Futures to MT5 Connection Service

The following table reviews the specifications of the Expert Advisor connecting CoinEX’s spot and futures markets to the MetaTrader 5 platform:

CoinEX spot and futures to MT5 at a glance

The connection service uses the HTTP protocol and Web request capabilities .

It pulls real-time data such as prices, trading volumes, order statuses and other market information directly from the CoinEX servers and displays them as symbols in the MT5 terminal.

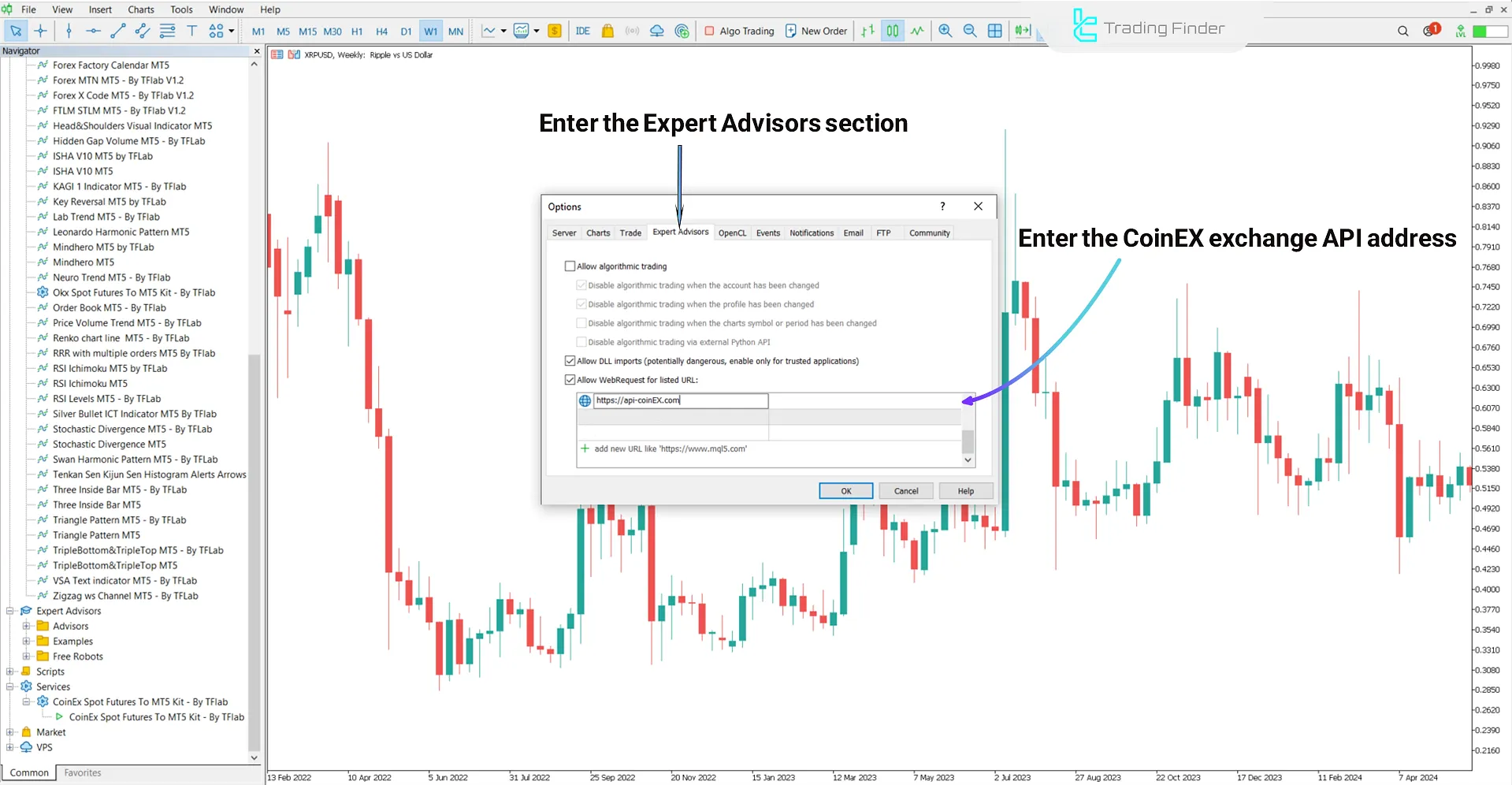

How to enable CoinEX API's WebRequest in MT5

1. From the top toolbar of MetaTrader 5, go to "Tools" → "Options," then open the "Expert Advisors" tab
2. Check the box "Allow WebRequests for listed URLs"
3. Add the following URL: https://api.coinEX.com, as shown in the image
4. Finally, click "OK"

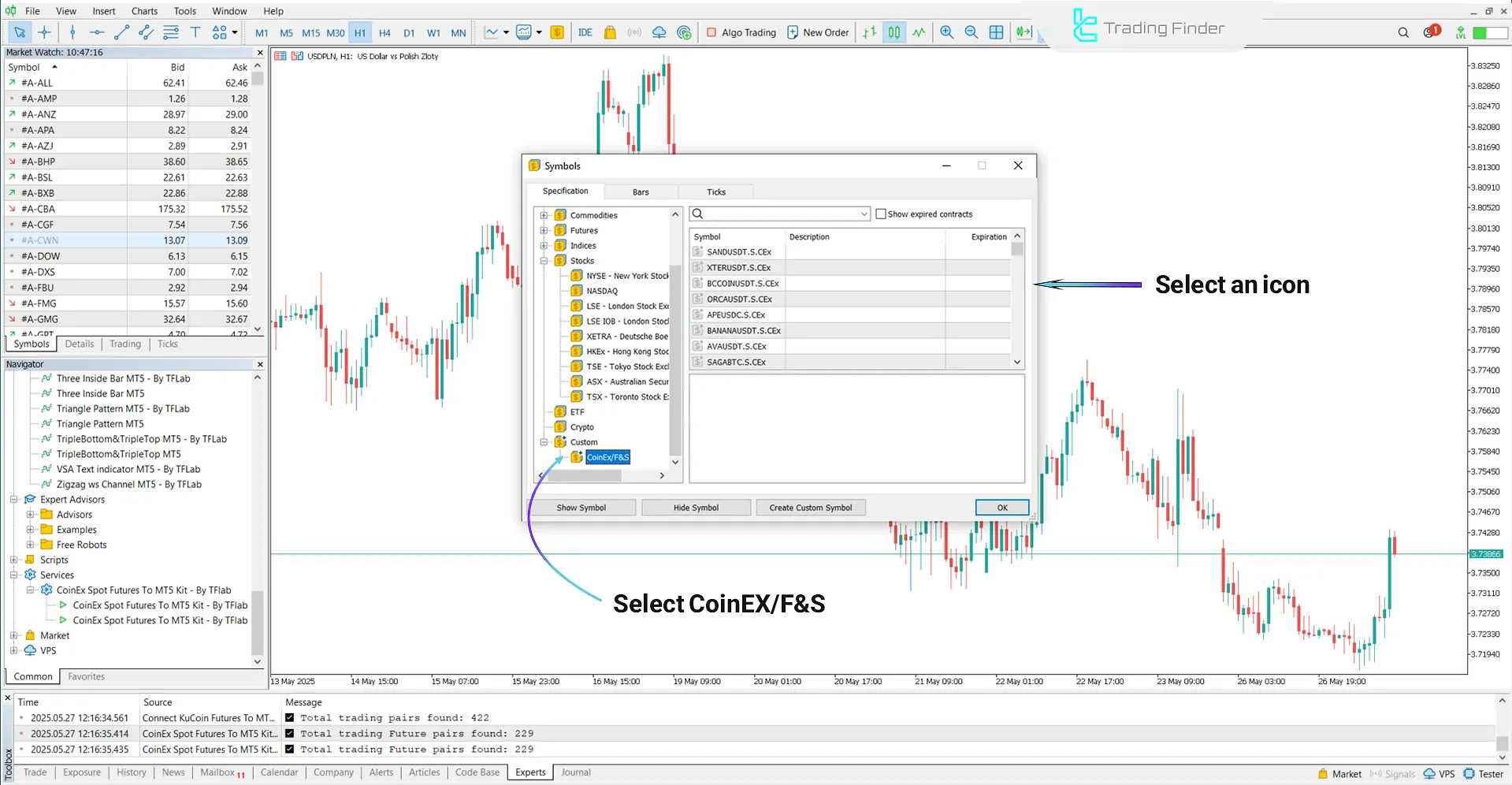

Add CoinEX symbol to MT5 for technical analysis

To use the MetaTrader indicator Spot and Futures market on CoinEX Cryptocurrencies, please follow these steps to add a symbol:

1. Press "Ctrl+M" to open the Market Watch window
2. Right click within the window and select "Symbols"
3. In the "Custom" section, open the "CoinEX" group and select the symbol you want
4. Click on the symbol and press "Show" to show it in the Market Watch list

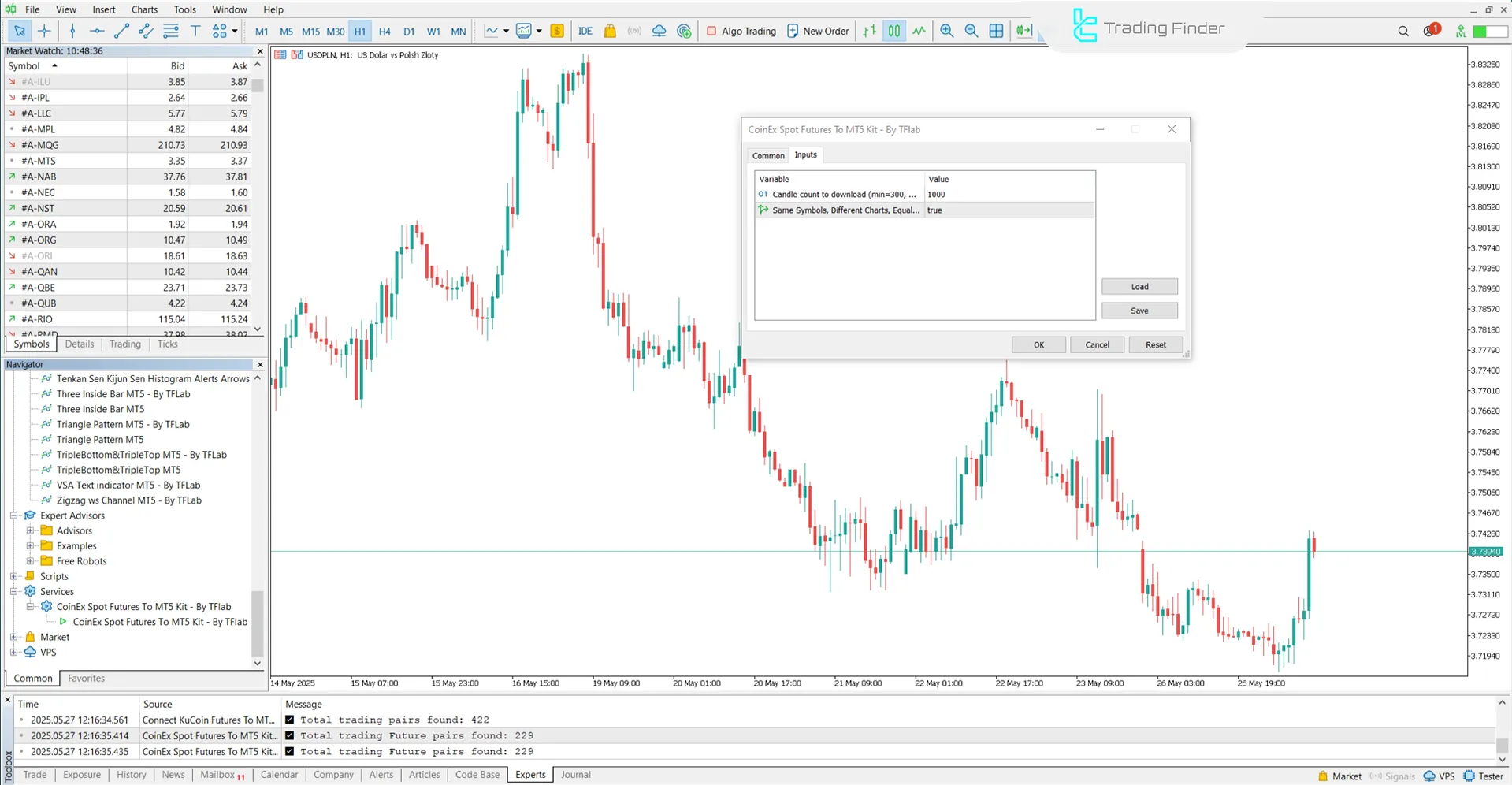

CoinEX Spot Futures to MT5 Expert Advisor Settings Panel

The image below shows the configuration panel linking the CoinEX spot and futures markets to MetaTrader 5:

• Number of candles to download (min = 300): Number of candles to load onto the chart
• Same symbol, different charts, equal: synchronize data for the same symbol in different charts

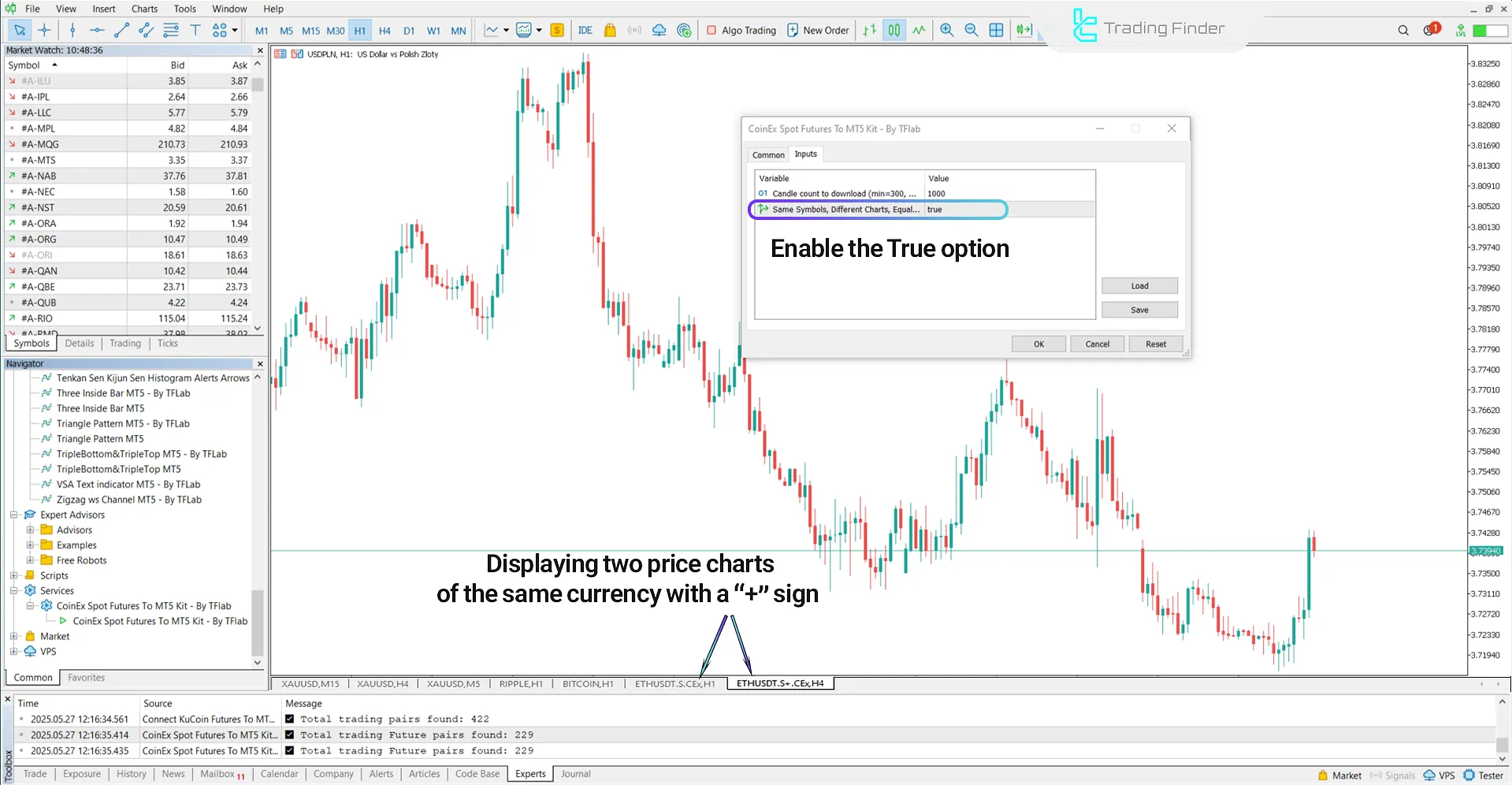

Note: When the " Same symbol, different charts, equal " feature is enabled, opening multiple charts for a symbol like ETH/USDT will automatically append a mark such as "+" or "++ " to the end of each chart name.

In this setup, each chart retrieves its data independently from the server based on its specific time range, there is no need to rely on data from other time ranges.

Conclusion

The Connect CoinEX Spot and Futures to MT5 tool enables seamless market analysis by directly receiving cryptocurrency data from CoinEX into MetaTrader 5.

This non-trading expert advisor uses HTTP protocol and the exchange's API to obtain accurate, real-time market data from both Spot and Futures markets, displaying it as analyzable symbols within the MT5 environment .
