Connect Binance Futures Expert MT5 – Free – [Trading Search] | Forex Indicators Download – MetaTrader 5 Resources

Connect Binance Futures Trading Platform to MT5 Expert Advisor is a non-trading tool that acts as a bridge between the communication tool MetaTrader 5 and Binance exchange servers.

This expert receives real-time Binance futures market data from the official Binance API and accurately displays it as price charts in the MT5 chart window.

The main focus of this system is fast and stable transfer of market data without performing trading operations such as buying , selling , or order execution on Binance.

Connect Binance Futures to MT5 Expert Advisor Spec Sheet

The following table describes the features of Binance Futures and MetaTrader 5 Connect Expert Advisors:

Binance Futures to MT5 Connection Service Overview

Connecting Binance Futures to MT5 Expert Advisor requires an internet connection to Binance servers via the HTTP protocol to retrieve live price and market data .

The communication is using the WebRequest internal function. To enable it, users must register the domain address https://fapi.binance.com in MetaTrader 5 settings and allow WebRequest .

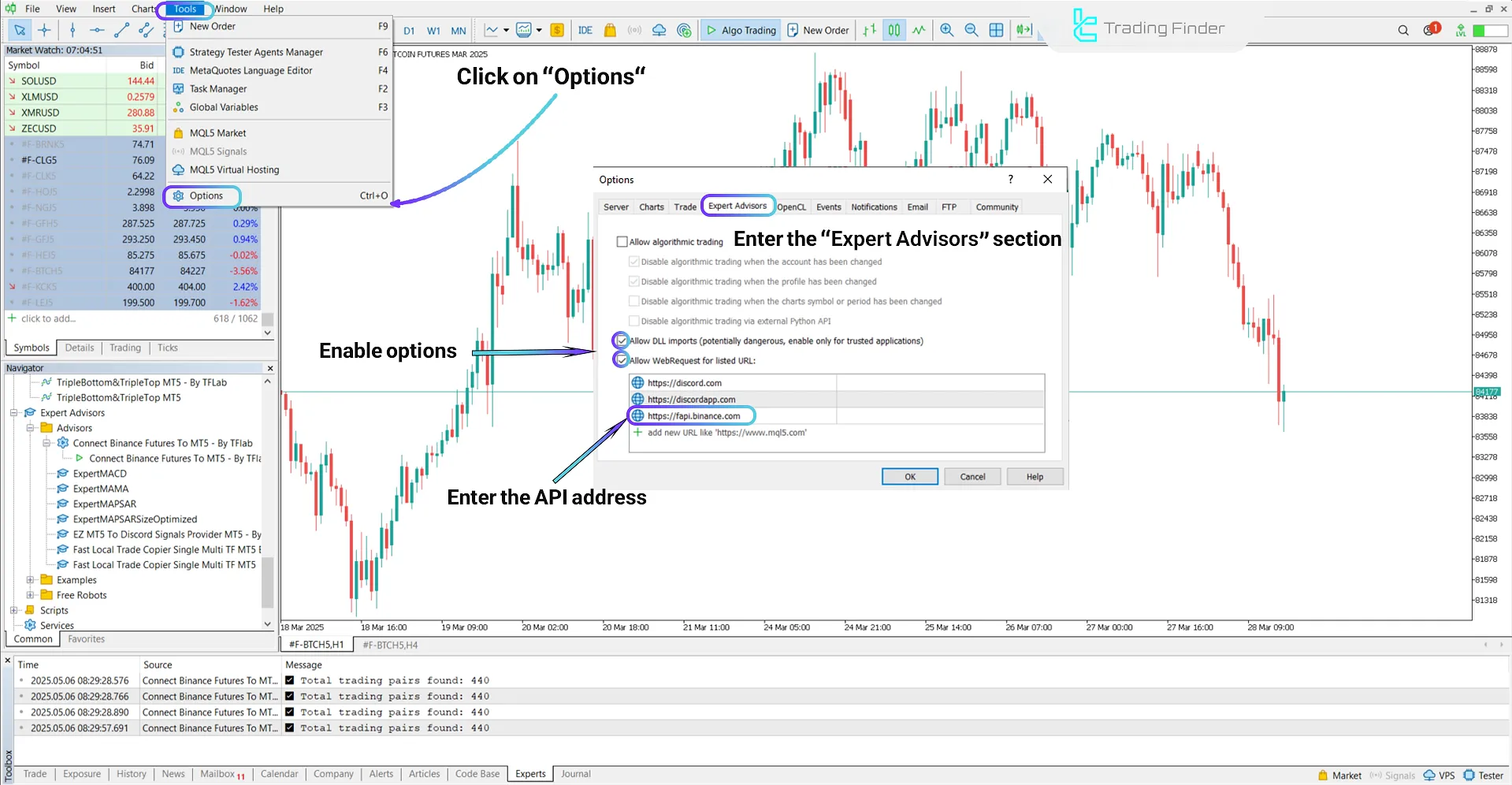

To enable WebRequest

To enable WebRequest, follow these steps:

1. From the top menu of MetaTrader 5, go to " Tools " and select " Options ";
2. In the settings window, go to the " Expert Advisors " tab.
3. Enable " Allow WebRequests for listed URLs " allows HTTP requests;
4. In the domain name list box, enter the Binance API address: " https://fapi.binance.com" and save the changes.

These settings prepare the platform to exchange price data Binance exchange Futures market directly into the MetaTrader 5 environment.

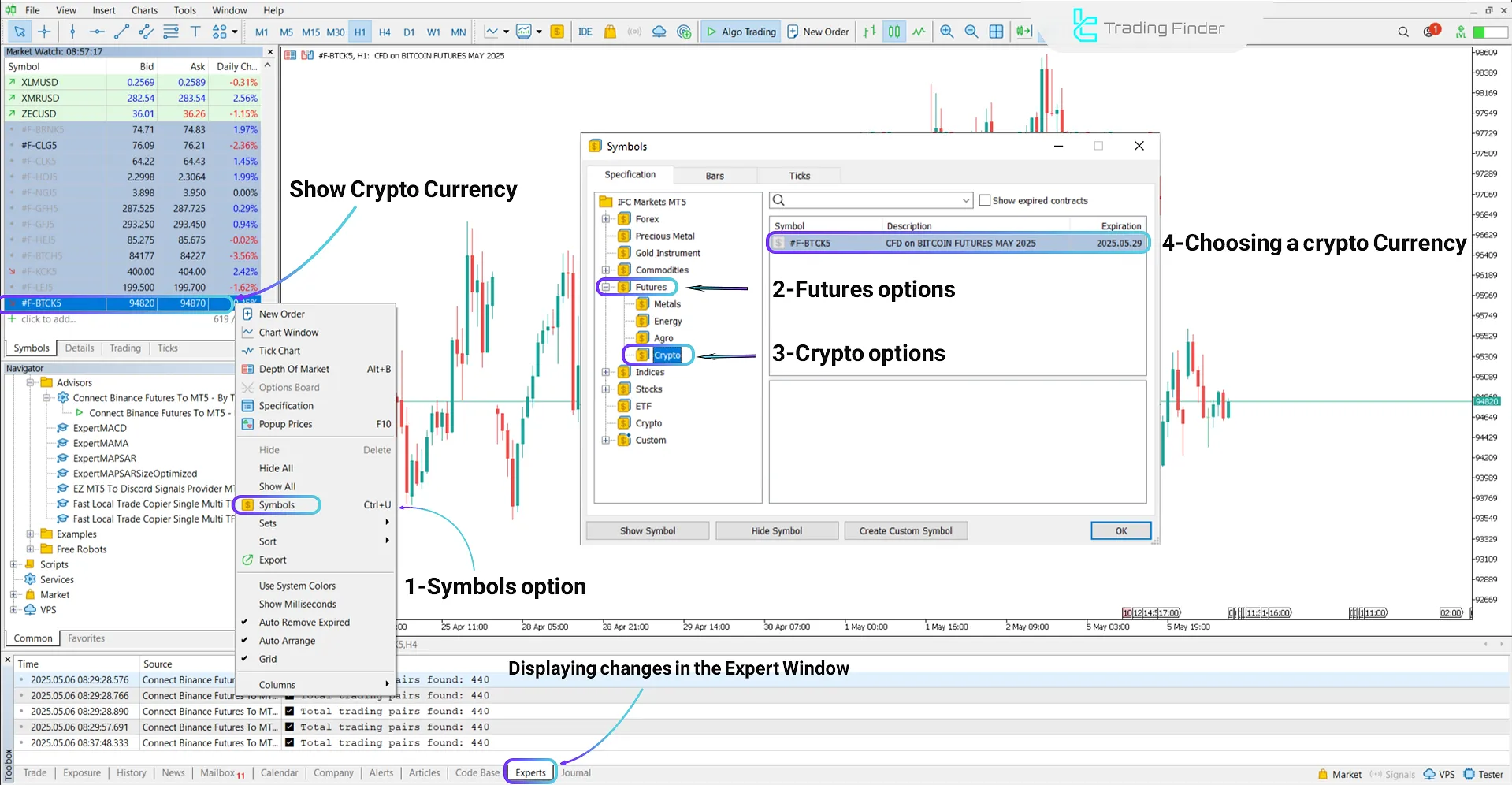

Adding Binance Futures trading symbol to MetaTrader 5

To view a specific cryptocurrency chart from the Binance Futures market in MetaTrader 5, you must first add the symbol to the " Market Watch " list.

After Binance Futures launches MT5 connection service on charts, please follow the steps below:

1. Press " Ctrl + U " or go to " Symbols " to access the complete list of symbols from the main menu;
2. Open the Binance Futures folder;
3. From the displayed symbol list , double-click the symbol you want ( eg, BTC/USDT );
4. Close the Symbols window and return to the Market Watch panel on the left side of MT5 .
5. Double-click the added symbol ( eg, BTC/USDT ) to open its chart.

After applying the expert to the chart, real-time price data from the Binance Futures trading platform will be displayed in MT5.

Connect Binance Futures to MT5 Expert Setup

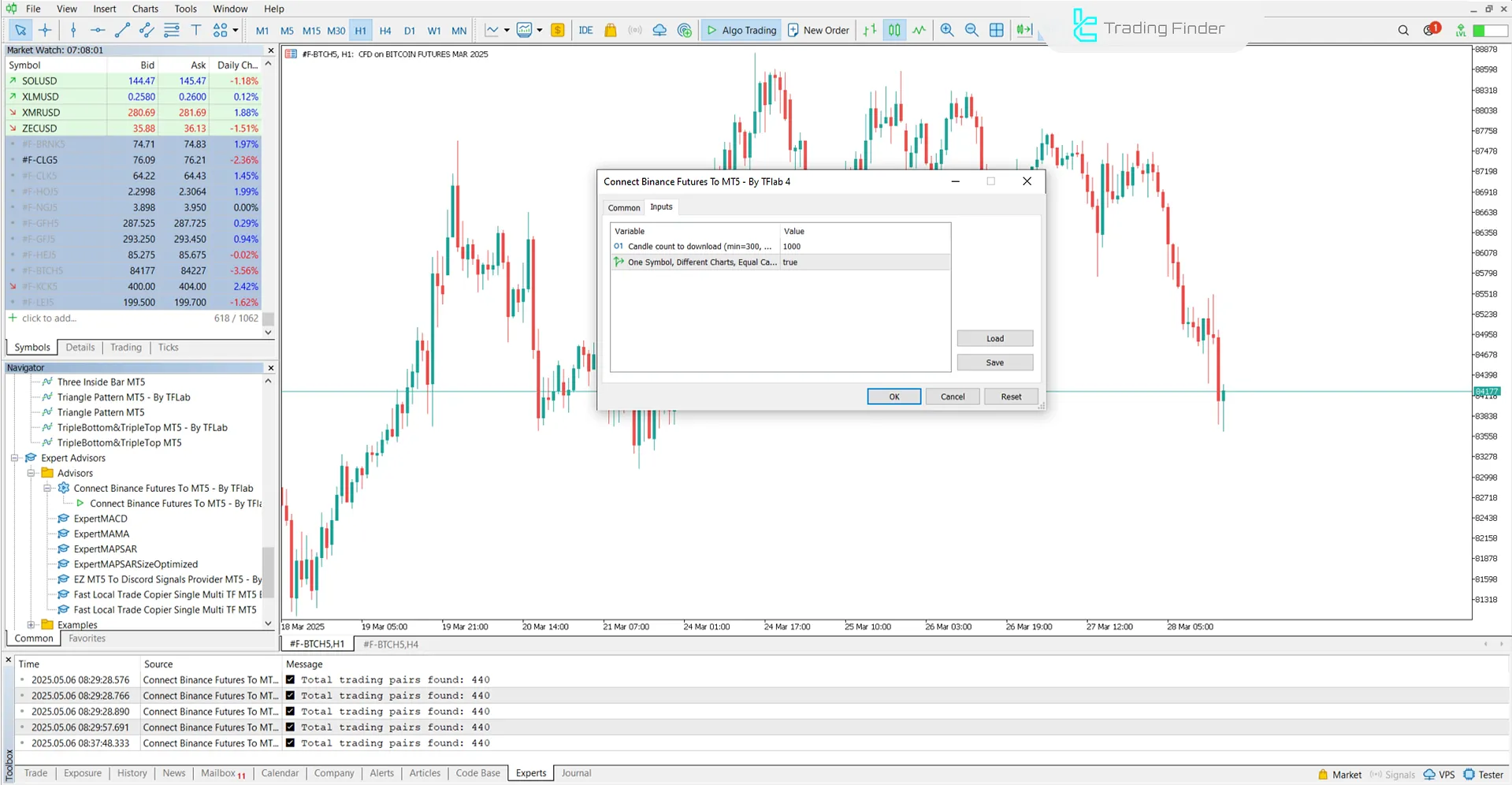

The image below shows the customizable settings panel of Binance Futures with MetaTrader 5 Connect Expert Advisor:

• Number of candles to download (min=300, max=1000): Retrieve the number of candles from Binance for chart display
• One symbol, different charts, same number of candles : one symbol, several charts with the same number of candles

  Note:

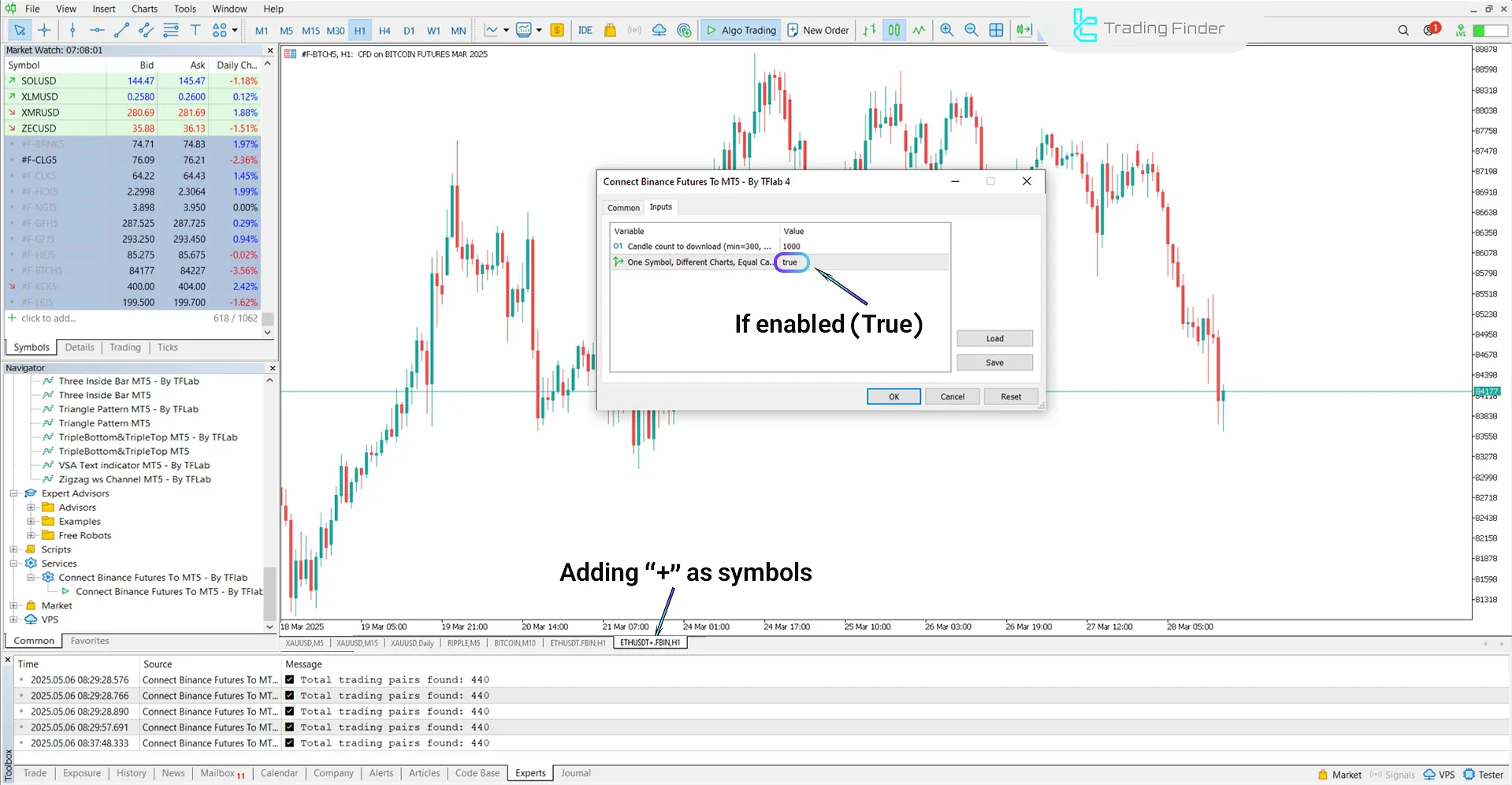

  When the " One symbol, different charts, same number of candles " option is enabled, opening multiple charts of the same asset - e.g. ETHUSDT/FBIN —will result in a + or ++ mark appearing next to each chart name (e.g., ETHUSDT+ ​​/ FBIN ). This shows that all charts maintain the same number of candles. In this mode, each timeframe fetches and loads its own data independent of the server .

  In contrast, if this option is disabled, higher timeframes get data from lower timeframes , creating dependencies between them.



Conclusion

Connect Binance Futures Trading Platform to MT5 Expert Advisor , a trade finder product , is a dedicated tool for importing real-time market data into the standard MetaTrader 5 environment for analysis.

The tool does not execute trades directly, but rather retrieves real-time price information from Binance via API and displays it as precise MT5 charts .
