The MT5 custom indicator named "wd.Multi_LineMA.mq5" is designed to provide traders with valuable insights into the moving average values ​​of higher timeframes (MTF Multi Timeframe). It includes additional visual features for in-depth analysis, such as the ability to view the trajectory of a specified number of bars and dynamic MA horizontal price lines.

The indicator works as follows:

MTF Multi-Time Range Moving Average:
The indicator calculates moving averages based on user-defined parameters such as period, method and applied price. If the current time frame is below the specified higher time frame, it will retrieve the moving average from the higher time frame and display it on the current chart. Conversely, if the current time range is higher than the specified time range, instead of displaying the moving average for the lower time range, you can choose to display a limited lowerTF chart or hide the lowerTF value on the current chart.

Moving average trajectory:

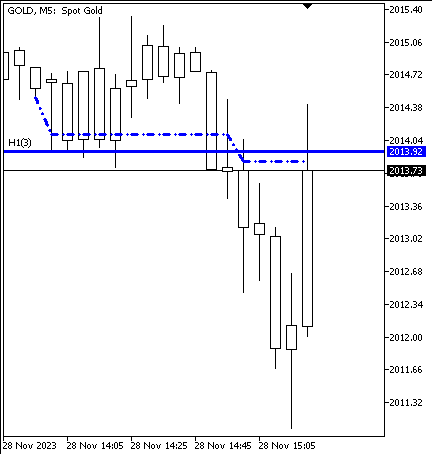

The indicator has a moving average trajectory that allows the user to adjust the length of the trajectory for a specific number of bars by changing the value in the property.

Horizontal price line:
The indicator consists of a horizontal price line that dynamically moves based on the last value of the moving average. This line corresponds to the moving average created at the current buy price level and is updated in real time as the moving average value changes.

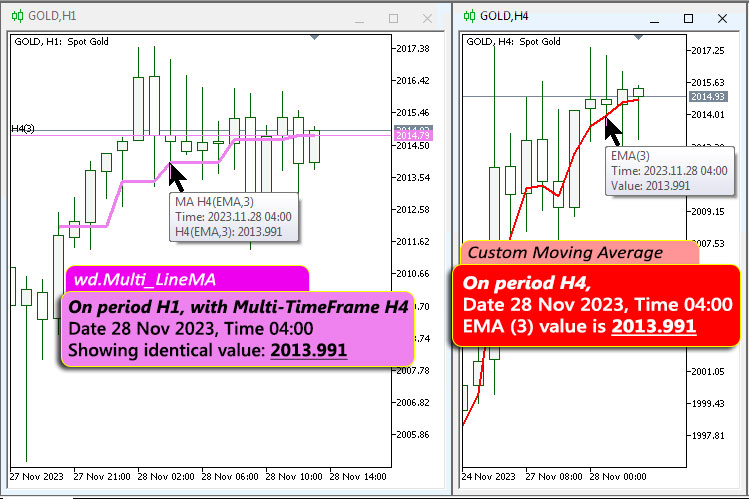

MTF Multi-timeframe moving averages are calculated based on real-time values. For example, during the golden hour, the date is November 28, 2023, time: 04:00, using "Custom Moving Average" (MetaTrader 5 built-in indicator), it shows the value 2013.991. Likewise, using "wd.Multi_LineMA" it will reflect the same value of 2013.991 even if the current chart period is different.

Moving average trajectories have proven to be very useful for observing historical trends without cluttering the chart with lines. Horizontal price lines aid in price visibility and help users identify support and resistance lines. It is used as a reference point for visualizing the current level of the moving average on the chart.

Overall, the indicator effectively configures the necessary parameters, initializes the multi-timeframe Moving Average, continuously updates the horizontal price lines, and manages the display of MA trajectories based on the relationship between timeframes. Its most significant advantage is that it enables users to quickly and efficiently identify resistance and support lines based on MA within seconds.

Attachment download

📎 wd.multi_linema.mq5 (14.9 KB)

Source: MQL5 #47513
