BingX Spot to MT5 Expert is a dedicated tool designed to provide real-time BingX spot cryptocurrency charts to MT5. This trade finder product allows users to view BingX spot crypto charts directly in MT5.

The expert cannot execute buy or sell transactions. Instead, it utilizes an API to bridge the BingX exchange and MT5, thereby enabling data transfer of crypto assets.

BingX Spot to MT5 Expert Specification Sheet

The table below outlines the features of the BingX Spot to MT5 connection.

BingX Spot to MT5 Connect Service Overview

The platform uses the WebRequest feature in MT5 to receive real-time data from BingX servers. Due to internal security restrictions, the user must manually grant WebRequest access to the required domain in order to establish a connection.

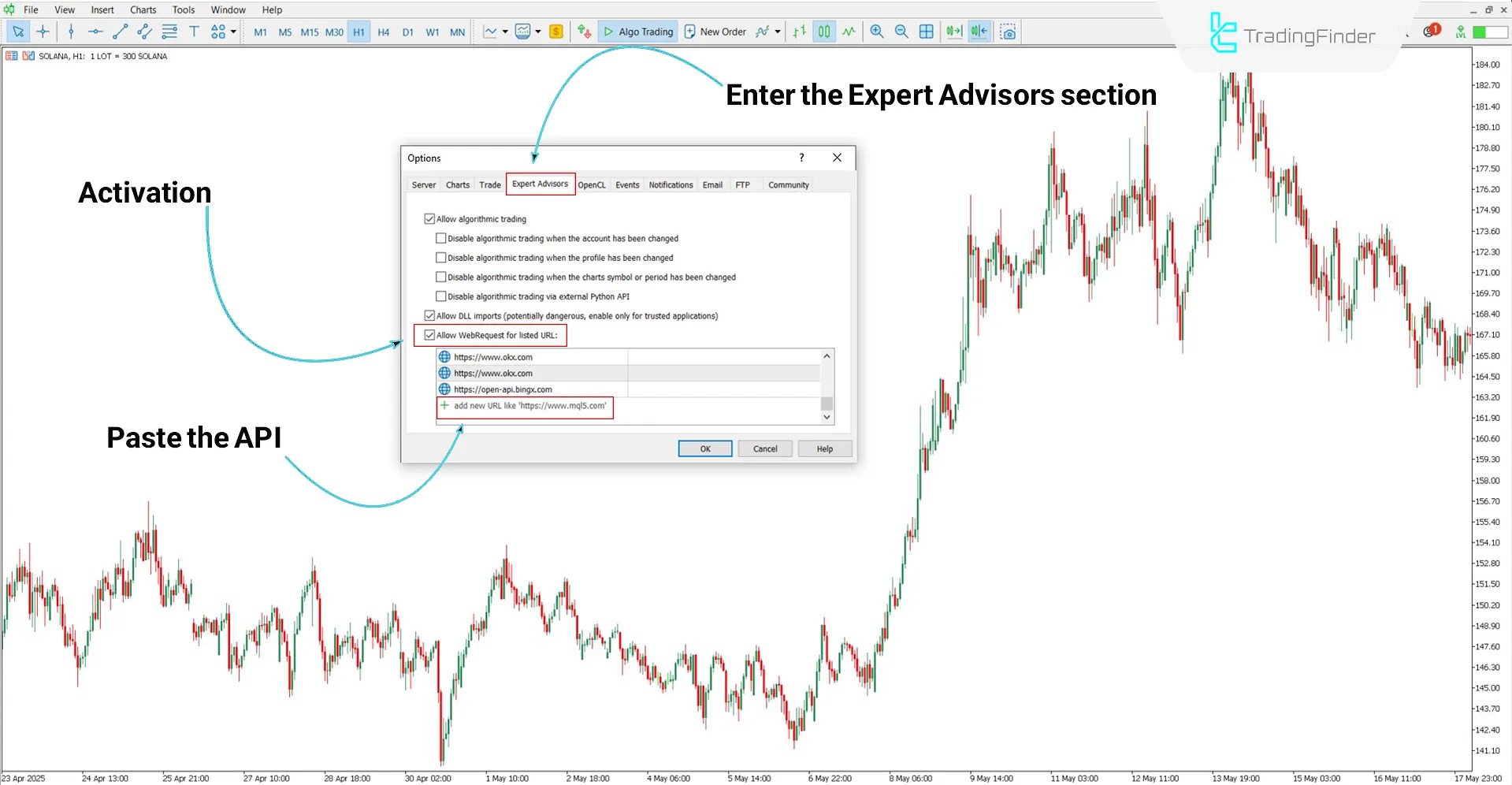

WebRequest activation steps

Steps to enable WebRequest:

1. Open the Tools menu and select Options
2. In the Options window, go to the Expert Advisor tab
3. Enable the option "Allow WebRequests for listed URLs" before entering the API address
4. Enter the API address https://open-api.bingx.com, and click OK to confirm

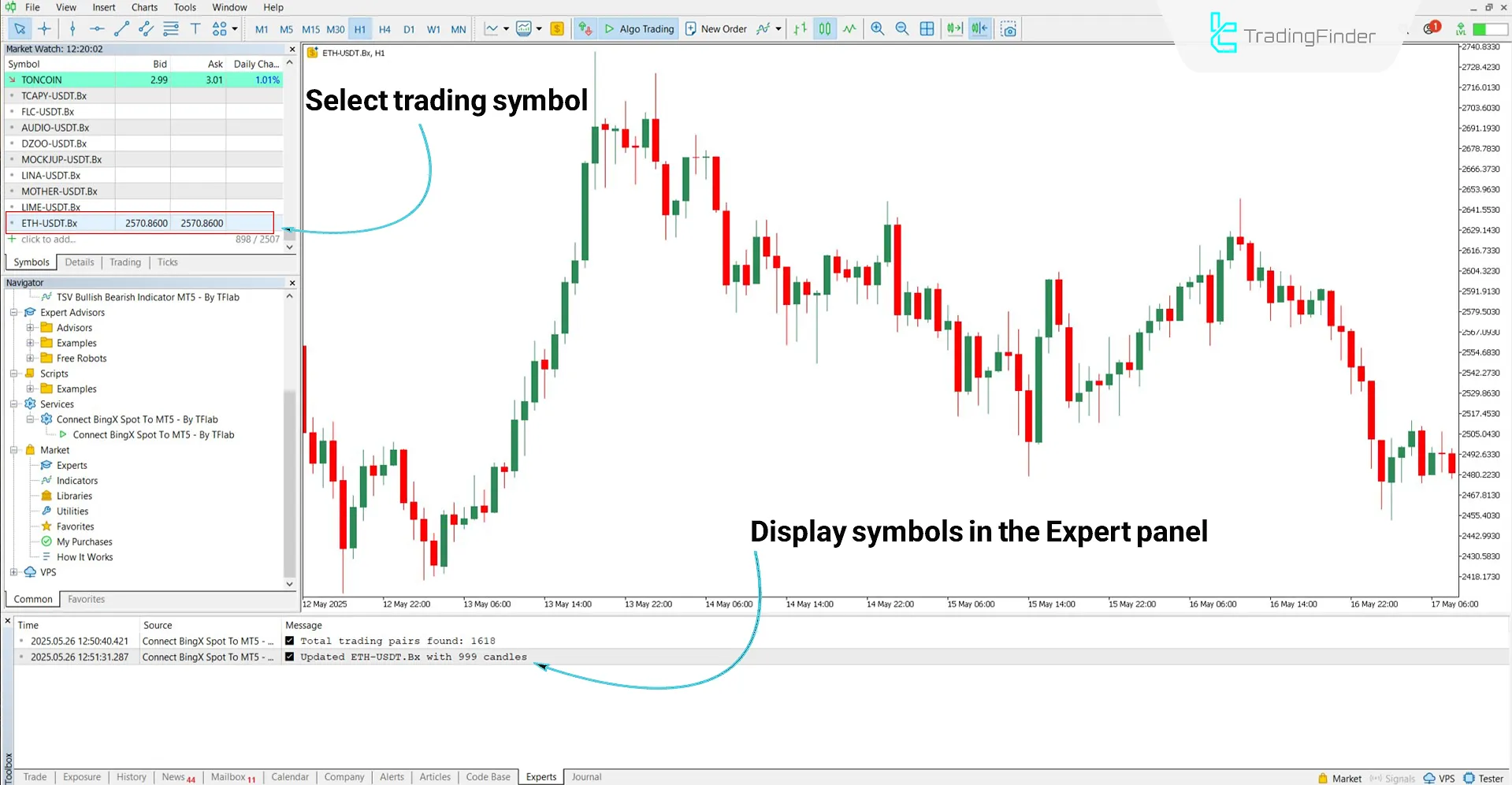

Add BingX Spot Symbol

To view cryptocurrency charts on the BingX spot market in MetaTrader 5, you must first add the desired symbol to the market watch list:

1. Press Ctrl + U to open the Symbols window
2. In the pop-up window, the BingX Spot encryption category is listed under Customize > BingX/Spot
3. Double-click on the desired symbol to add it to Market Watch
4. At this stage, go to the Market Watch section, right-click on the desired symbol and select "Chart Window"

Note: Information about the symbols displayed on the chart can be viewed in the "Experts" tab of MetaTrader 5.

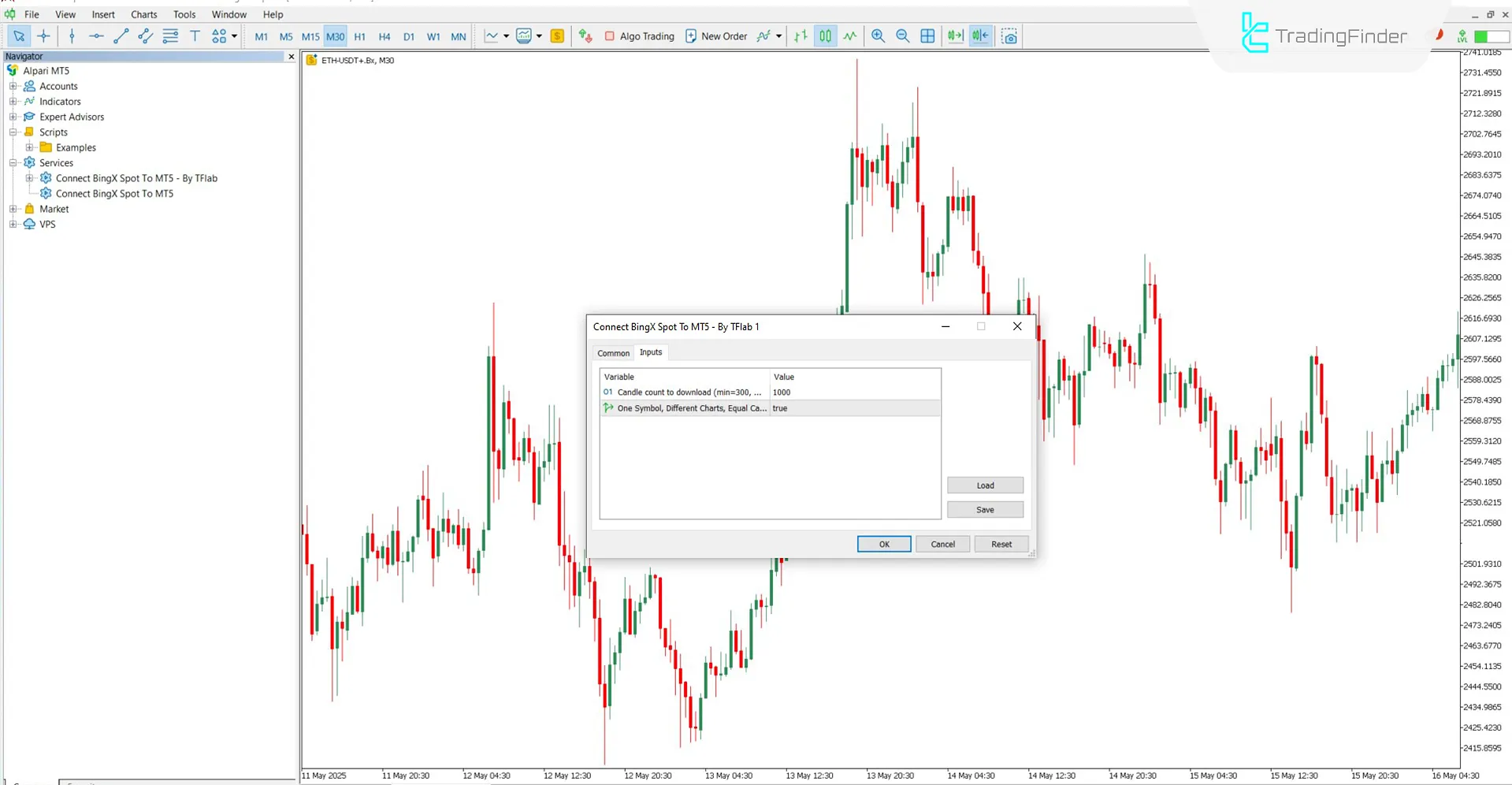

BingX Spot to MT5 Expert Setup

The following fields are available in BingX Spot to MT5 Expert settings:

• Number of candles to download (minimum = 100, maximum = 10000): This option allows to choose the number of candles to download when launching the EA
• One symbol, different charts, same candles: If enabled, all charts of the same symbol will show the same number of candles

Note:

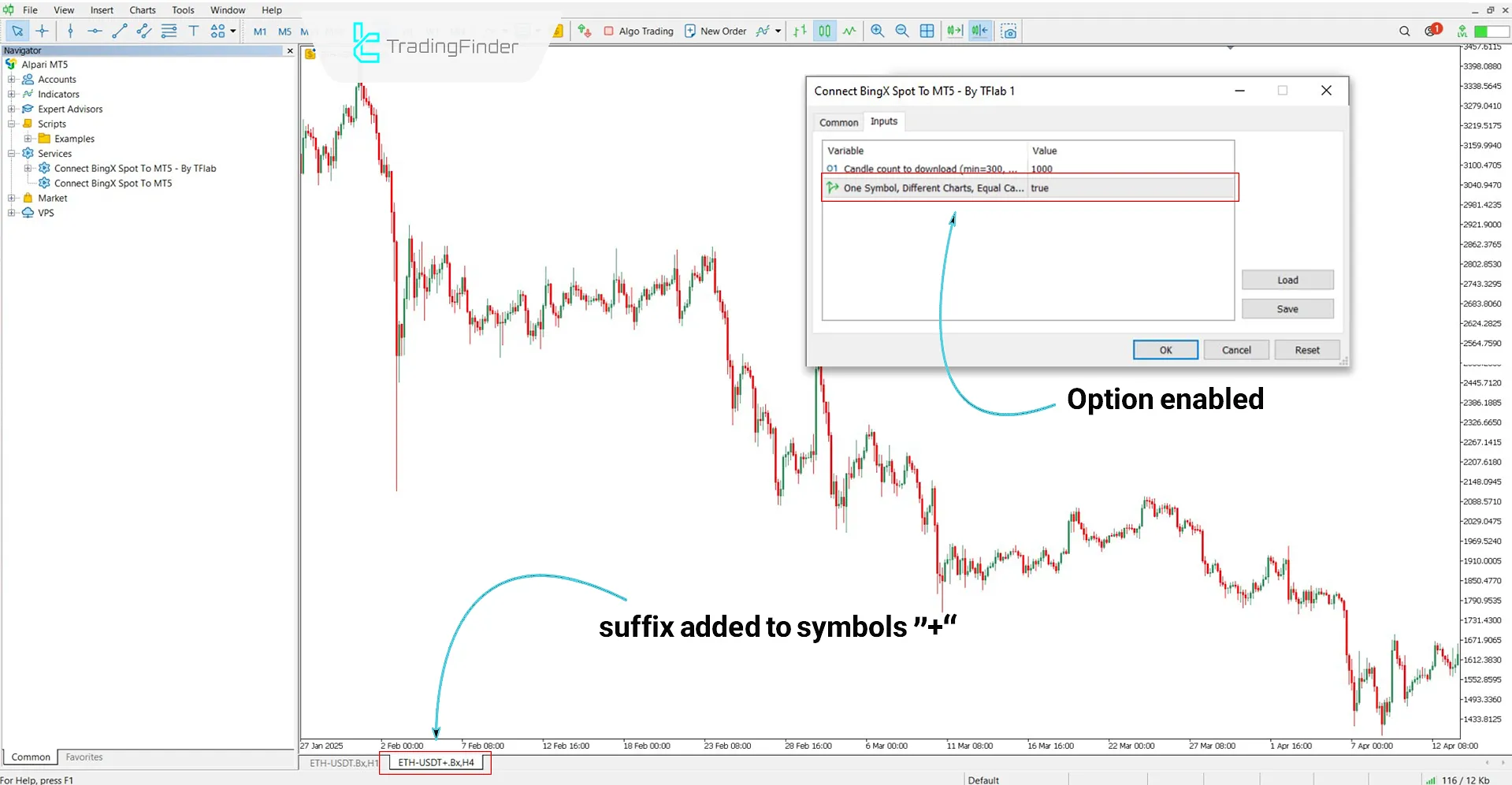

When the "One symbol, different charts, same number of candles" option is enabled and you open multiple charts of the ETH/USDT symbol on different timeframes, a "+" sign will be added to the end of each chart name (e.g. ETH+, ETH++).
In this mode, all charts maintain the same number of candles, and each timeframe independently obtains its own price data from the server.
However, if this option is disabled, the higher time range gets the required data from the lower time range instead of requesting the data directly from the server.

Conclusion

The BingX Spot to MT5Connect service is a utility for displaying BingX exchange cryptocurrency prices in real time in MetaTrader 5.

This trading tool only acts as a data relay, retrieving price information through the BingX API without placing a buy or sell order. Users can leverage this expert to analyze accurate and customizable cryptocurrency charts on the MT5 platform.
